5 x Bourns Metal Oxide Varistor MOV-14D431K, 460pF 50A, Varistor 430V - Bourns
roll over the image to zoom in
£0.00
£5.99
RS 851-8322
Unit Quantity:
5
Location:
TS 41B
Bourns
Bourns MOV-14D Series Metal Oxide Varistor 460pF 50A, Clamping 710V, Varistor 430V
- BMUK Part # :-851-8322
- BrandBourns
- Mfr. Part No.MOV-14D431K
- Location :-TS 41B
Product Details

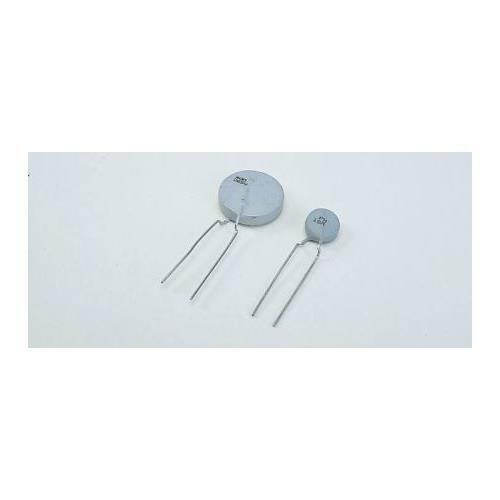

Metal Oxide Varistors - Bourns - MOV Series
The Bourns MOV-14D Series of 14 mm radial leaded varistor devices protects against over voltage transients such as lightning, power contact and power induction.
The devices have a high current handling, high energy absorption capability and fast response times to protect against transient faults up to rated limits and will provide excellent reliability.
High voltage rating
Fast response time
Bidirectional
Surge protection
Transient Voltage Suppressors (MOV)
Specifications
| Varistor Voltage | 430V | |
| Maximum DC Voltage Rating | 350V | |
| Clamping Voltage | 710V | |
| Clamping Current | 50A | |
| Energy | 115J | |
| Series | MOV-14D | |
| Diameter | 16.5mm | |
| Capacitance | 460pF | |
| Thickness | 5.2mm | |
| Dimensions | 16.5 (Dia.) x 5.2mm | |
| Lead Pitch | 7.5mm |
