    Analog Devices AD5620ARJZ-1500RL7 12 bit Serial DAC SPI 125ksps

    You will get 5 DAC IC's on SM tape


    • BrandAnalog Devices
    • Mfr. Part No.AD5620ARJZ-1500RL7
    Analog Devices



    Analog Devices AD5620ARJZ-1500RL7, 12 bit Serial DAC, 125ksps, 8-Pin SOT-23

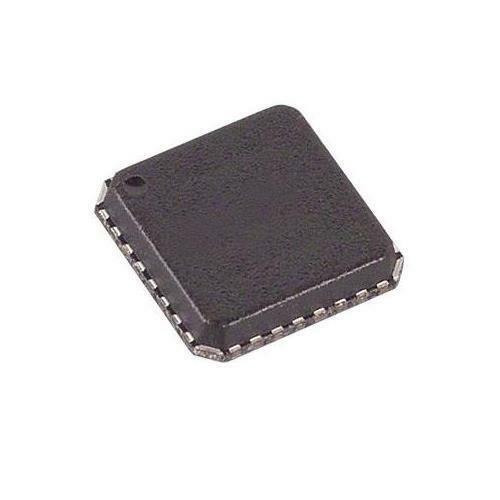

    Image representative of range



    Product Details

    Digital to Analogue Converters 12 Bit, Single Channel with Serial Interface, Analog Devices


    Digital to Analogue Converters - Analog Devices

    FEATURES

    Low power, single nanoDACs
    AD5620: 12 bits
    12-bit accuracy guaranteed
    On-chip, 1.25 V/2.5 V, 5 ppm/°C reference
    Tiny 8-lead SOT-23/MSOP packages
    Power-down to 480 nA @ 5 V, 200 nA @ 3 V
    3 V/5 V single power supply
    Guaranteed 16-bit monotonic by design
    Power-on reset to zero/midscale
    3 power-down functions
    Serial interface with Schmitt-triggered inputs
    Rail-to-rail operation
    SYNC interrupt facility

    APPLICATIONS
    Process control
    Data acquisition systems
    Portable battery-powered instruments
    Digital gain and offset adjustment
    Programmable voltage and current sources
    Programmable attenuators

    PRODUCT HIGHLIGHTS

    1. 12-bit nanoDAC—12-bit accuracy guaranteed.
    2. On-chip, 1.25 V/2.5 V, 5 ppm/°C reference.
    3. 8-lead SOT-23 Package
    4. Power-on reset to 0 V or midscale.
    5. 10 μs settling time.




    Specifications


    Resolution12 bit
    Number of DAC Channels1
    Digital Interface TypeSerial (SPI/QSPI/Microwire)
    Mounting TypeSurface Mount
    Package TypeSOT-23
    Power Supply TypeSingle
    Conversion Rate125ksps
    Typical Single Supply Voltage3V, 5V
    Voltage ReferenceInternal
    ArchitectureResistor String
    Pin Count8
    Maximum Settling Time10µs
    Output PolarityUnipolar
    Full Scale Error±0.85%FSR
    Dimensions2.9 x 1.6 x 1.15mm
    Length2.9mm
    Maximum Operating Temperature+105 °C
    Height1.15mm
    Minimum Operating Temperature-40 °C
    Integral Nonlinearity Error±6LSB
    Width1.6mm











    View the full DATA SHEET here
