AL-ELKO 6000uf 120V
AL-ELKO

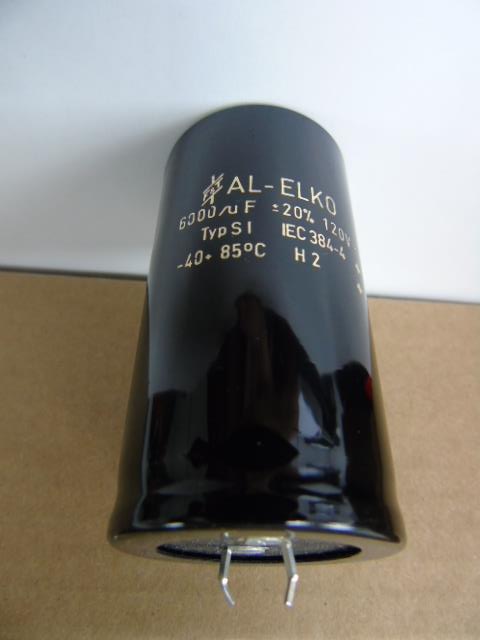

You are looking at a batch of 5 AL-ELKO 6,000uf 120V capacitorsAl-ELKO 6000μF ±20% 120 V dc Through Hole Can Aluminium Electrolytic Capacitors
These are BRAND NEW items
Typ S1 Series - Clamp mounting
High grade capacitors featuring high life expectancy
Low ESR and impedance values and high ripple currents
Ideally suited for switch mode power supplies and energy storage circuits in industrial applications
Clamp fixing not supplied. The can will be at the negative terminal potential.
| Temperature Range | -40 to 85 °C | |||
| Insulation Voltage Proof | >2500Vdc | |||
| Terminals | PCB Snap In | |||
.Specifications
| Capacitance | 6000µF | |
| Construction | Can | |
| Diameter | 40mm | |
| Dimensions | 40 Dia. x 76mm | |
| Height | 76mm | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Mounting Type | Through Hole | |
| Tolerance | ±20% | |
| Tolerance Minus | -20% | |
| Tolerance Plus | +20% | |
| Voltage | 120 V dc |
