4750 x Panasonic DSCQ00100L NPN Transistor, 100 mA, 50 V, 3-Pin - Texas Instruments
roll over the image to zoom in
£0.00
£182.99
RS 719-3187
Unit Quantity:
4750
Unit Type:
Unit
Location:
APR BOX N
Texas Instruments

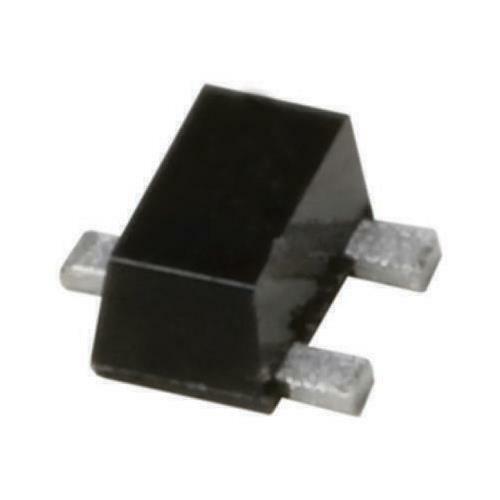

Panasonic DSCQ00100L NPN Transistor, 100 mA, 50 V, 3-Pin Mini3 F1 B
- BMUK Part # :-719-3187
- BrandPanasonic
- Mfr. Part No.DSCQ00100L
- Location :-APR BOX N
- You will get 4750 Transistors on 1 Reel
Product Details
Small Signal NPN Transistors, Panasonic
Bipolar Transistors, Panasonic
Specifications
| Transistor Type | NPN | |
| Maximum DC Collector Current | 100 mA | |
| Maximum Collector Emitter Voltage | 50 V | |
| Package Type | Mini3 F1 B | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 100 mW | |
| Minimum DC Current Gain | 210 | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage | 60 V | |
| Maximum Emitter Base Voltage | 7 V | |
| Maximum Operating Frequency | 150 MHz | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Temperature | +150 °C | |
| Height | 0.38mm | |
| Maximum Collector Emitter Saturation Voltage | 0.3 V | |
| Length | 0.6mm | |
| Width | 0.85mm | |
| Dimensions | 0.6 x 0.85 x 0.38mm |
