4 x Texas Instruments CD4510BE 4-stage BCD Counter Up/Down Counter 3-18V 16-Pin - Texas Instruments
roll over the image to zoom in
£0.00
£5.99
RS 526-707
Unit Quantity:
5
Unit Type:
Unit
Location:
BRA 3N X 4
Texas Instruments

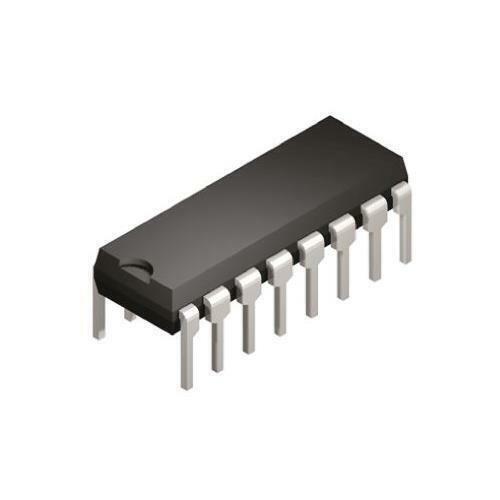

Texas Instruments CD4510BE 4-stage BCD Counter, Up/Down Counter, 3 → 18 V, 16-Pin PDIP
- BMUK Part # :-526-707
- BrandTexas Instruments
- Mfr. Part No.CD4510BE
- Location :-BRA 3N X 4
- You will get a pack of 5 ICs
Product Details
4000 Series Counters & Shift Registers, Texas Instruments
Texas Instruments range of Counters & Shift Registers from the 4000 Series CMOS Logic Family
4000 CMOS Logic Family, Texas Instruments
CMOS Family devices
Wide operating voltage range: 3 to 18V
Specifications
| Package Type | PDIP | |
| Logic Function | Counter | |
| Number of Stages | 4 | |
| Logic Family | 4000 | |
| Mounting Type | Through Hole | |
| Counter Type | BCD | |
| Operation Mode | Down Counter, Up Counter | |
| Number of Elements | 1 | |
| Pin Count | 16 | |
| Minimum Operating Supply Voltage | 3 V | |
| Maximum Operating Supply Voltage | 18 V | |
| Dimensions | 19.3 x 6.35 x 4.57mm | |
| Length | 19.3mm | |
| Width | 6.35mm | |
| Height | 4.57mm | |
| Minimum Operating Temperature | -55 °C | |
| Maximum Operating Temperature | +125 °C | |
| Triggering Type | Positive Edge | |
| Direction Type | Bi-Directional |
To view the datasheet please Click Here
Please visit our shop to see all our other items we have in stock,
Please call us if you have any questions,
Many thanks!
