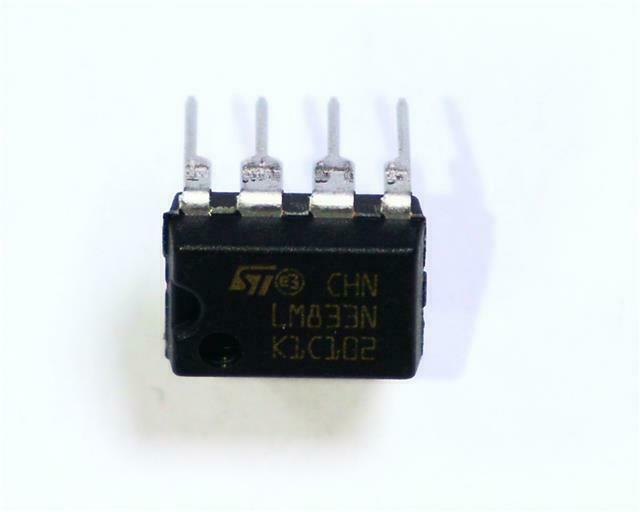

4 x LM833N Dual Audio Grade Op Amp ST Micro 15MHz Low Distortion 8-pin PDIP - ST Microelectronics
roll over the image to zoom in
£0.00
£7.99
RS 356-4478
Unit Quantity:
4
Unit Type:
Unit
Location:
APR White Box Bulk
ST Microelectronics
STMicroelectronics LM833N Dual Op Amp 15MHz Audio Low Distortion 8-pin PDIP
You will get a pack of 4 Op Amps
- BrandSTMicroelectronics
- Mfr. Part No.LM833N
Product Details
Features
■ Low voltage noise: 4.5 nV/√Hz
■ High gain bandwidth product: 15 MHz
■ High slew rate: 7 V/µs ■ Low distortion: 0.002%
■ Excellent frequency stability
■ ESD protection 2 kV
Applications
■ Audio systems
■ Preamplification, filtering
Description
The LM833 is a monolithic dual operational amplifier particularly well-suited to audio applications. It offers low voltage noise (4.5 nV/√Hz) and high frequency performances (15 MHz gain bandwidth product, 7 V/µs slew rate). In addition, the LM833 has a very low distortion (0.002%) and excellent phase/gain margins.
Dual Operational Amplifiers, STMicroelectronics
Operational Amplifiers, STMicroelectronics
Specifications
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Power Supply Type | Dual | |
| Number of Channels per Chip | 2 | |
| Pin Count | 8 | |
| Typical Gain Bandwidth Product | 15MHz | |
| Typical Dual Supply Voltage | ±12 V, ±3 V, ±5 V, ±9 V | |
| Typical Slew Rate | 7V/µs | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +105 °C | |
| Width | 7.1mm | |
| Dimensions | 9.8 x 7.1 x 3.3mm | |
| Length | 9.8mm | |
| Typical Input Voltage Noise Density | 4.5nV/√Hz | |
| Height | 3.3mm | |
| Typical Voltage Gain | 100 dB |
For a Specification PDF Please CLICK HERE
