300 x Nexperia BC848W NPN Transistor, 100mA, 30V, 3-Pin SOT-323 - Nexperia
roll over the image to zoom in
£0.00
£8.99
RS 816-7726
Unit Quantity:
300
Unit Type:
Unit
Location:
ES
Nexperia
Nexperia BC848W NPN Transistor, 100 mA, 30 V, 3-Pin SOT-323
- BMUK Part No.816-7726
- BrandNexperia
- Mfr Part No.BC848W
-
- You will get 300 Transistors on a Reel

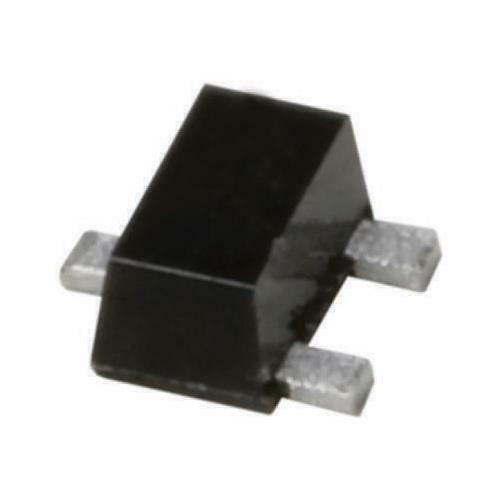

Image representative of range only
Product Details
Small Signal NPN Transistors, Nexperia
Bipolar Transistors, Nexperia
Specifications
Maximum Collector Emitter Saturation Voltage
600 mV
Maximum Operating Temperature
+150 °C
Maximum Operating Frequency
100 MHz
Number of Elements per Chip
1
Maximum Base Emitter Saturation Voltage
900 mV
Length
2.2mm
Maximum Collector Base Voltage
30 V
Transistor Configuration
Single
Brand
Nexperia
Maximum Collector Emitter Voltage
30 V
Package Type
SOT-323 (SC-70)
Maximum Power Dissipation
200 mW
Mounting Type
Surface Mount
Minimum Operating Temperature
-65 °C
Width
1.35mm
Maximum DC Collector Current
100 mA
Transistor Type
NPN
Height
1.1mm
Pin Count
3
Dimensions
2.2 x 1.35 x 1.1mm
Maximum Emitter Base Voltage
5 V
Minimum DC Current Gain
110
