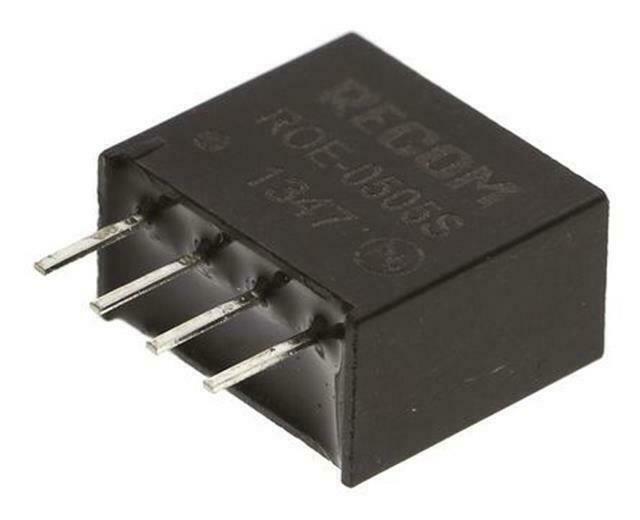

3 x Recom ROE-0505S 1W Isolated DC-DC Converter 5V DC In and Out, 1KV Isolation - Recom Power

roll over the image to zoom in

£0.00
£11.99
RS 777-3285 D
Earn0
reward points

In stock: 18

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    3
    Unit Type:
    Unit
    Location:
    ES WS-1F


    Recom Power


    Recom 1W Isolated DC-DC Converter Vin 4.5-5.5V DC Vout 5V@200mA DC 1KV ISO



    You will get 3 DC-DC Converters,

    See our other items for a range of DC/DC Converters and MOSFET/ IGBT Driver IC's






    • 777-328BMUK Part # :-5
    • BrandRecom
    • Mfr. Part No.ROE-0505S
    Recom



    Recom 1W Isolated DC-DC Converter, Vin 4.5 → 5.5 V dc, Vout 5V dc, I/O isolation 1000V dc




    Product Details

    Recom 1W SIP Single Output Unregulated Isolated DC-DC Converter - ROE Series

    The ROE series is part of the Recom Econoline. This is a DC/DC unregulated converter, single output, SIP4, 1W. The Recom ROE DC/DC converter features an operating temperature range of -40°C to +85°C. This DC/DC converter typical efficiency is up to 75%

    1:1 Input Range
    Low cost 1W Converter
    Efficiency up to 75%
    Operating Temperature Range -40°C to +85°C


    Recom - SIP 0.5W to 3W



    Specifications


    Output Voltage5V dc
    Input Voltage Range4.5 → 5.5 V dc
    Input Voltage Nominal5 V dc
    Isolation Voltage1000V dc
    Power Rating1W
    Output Current200mA
    Mounting TypeThrough Hole
    Number of Outputs1
    PackageSIP 4
    Efficiency75%
    Minimum Temperature-40°C
    Maximum Temperature+85°C
    Load Regulation10%
    Line Regulation1.20%
    Ripple And Noise100mV Pk-Pk
    SeriesROE
    MTBF2400000h
    Depth6mm
    Length11.5mm
    Weight1.4g


    For a Specification PDF Please CLICK HERE

    Thank you for looking, if you have any questions please ask or call us.


    Please see our other items for a wide range of Electronic components.
