2x KM2520EH/1SGD, Kingbright Subminiature Green PCB Status Indicator, 10mcd 2.5V - Kingbright

roll over the image to zoom in

£0.00
£4.49
Rapid 56-2322 / TS-LB-3F
Earn0
reward points

In stock: 30

Sorry! We're out of stock

Add To Your Wishlist
    Type:
    Indicator LED
    Colour:
    Green
    Unit Quantity:
    2
    Unit Type:
    Unit
    Item Height:
    6.35 mm
    Item Length:
    6.22 mm
    Mounting Style:
    Through-Hole
    LED Colour:
    Green
    Number of LEDs:
    1
    Viewing Angle:
    40°
    Lens Surface:
    Diffused
    Number of Pins:
    2
    Nominal Voltage:
    2.5 V
    Wavelength:
    568 nm
    Light Intensity:
    15 mcd
    Forward Voltage:
    2.2 V
    Location:
    TS-LB-3F


    Kingbright

    KM2520EH/1SGD, Kingbright Subminiature Green PCB Status Indicator, 10mcd 2.5V

    You will get TWO LED Indicators

    Description:
    The 2520 PCB LED indicators, from Kingbright, are available in single and quad block packages. They consist of subminiature LEDs within a black plastic housing. The housing holds the LEDs in place, at a right angle to the board

    Features:
    • Subminiature LEDs
    • Variety of colours
    • Through-hole mounting
    • Black plastic housing, right angle
    • High-contrast
    • UL 94 V-0 rated
    • Diffused lens

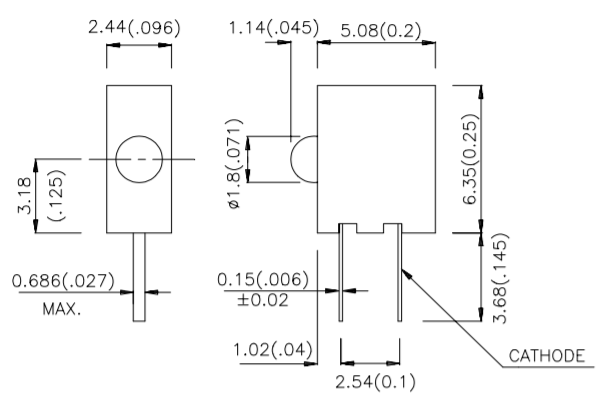

    Dimensions:

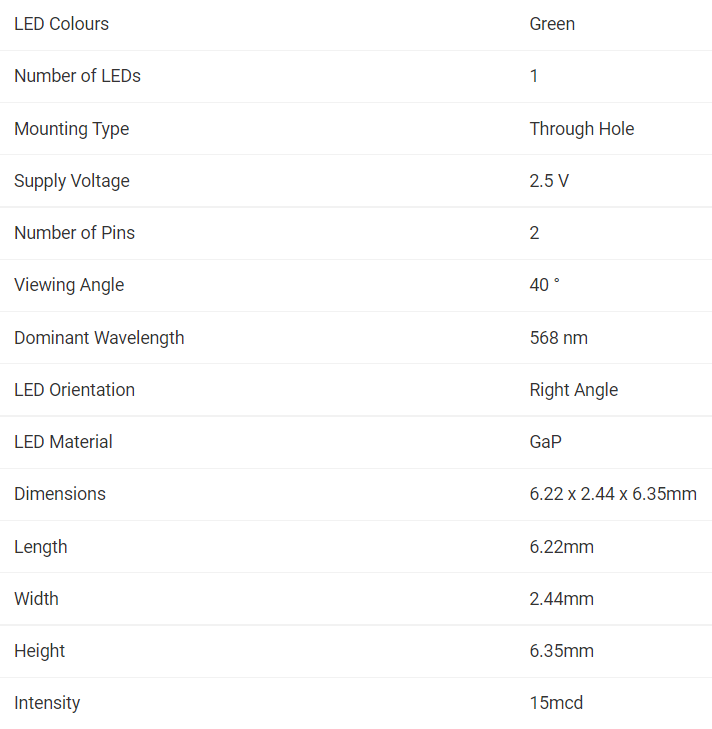

    Specifications:
