25 x DiodesZetex 74AHCU04S14-13, Hex, Push-Pull Inverter, 2-5.5V, 14-Pin SOIC - DiodesZetex
roll over the image to zoom in
£0.00
£13.99
RS 798-8972
Unit Quantity:
25
Unit Type:
Unit
Location:
ES-14F
DiodesZetex

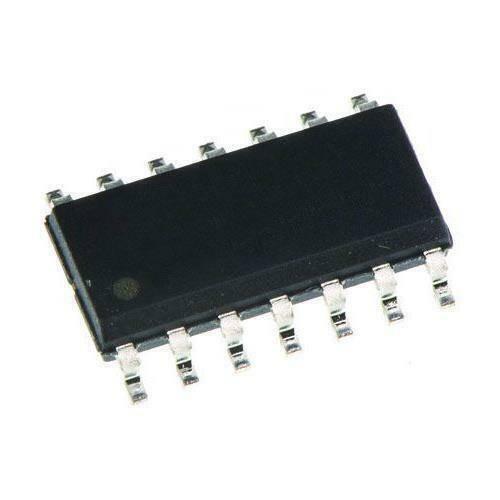

DiodesZetex 74AHCU04S14-13, Hex, Push-Pull Inverter, 2 → 5.5 V, 14-Pin SOIC
- BMUK Part # :-798-8972
- BrandDiodesZetex
- Mfr Part No.74AHCU04S14-13
-
- You will get a pack of 25 ICs
Product Details
74AHCU Family, DiodesZetex
The 74AHCU range by DiodesZetex compromises of advanced high-speed general purpose ICs. Each logic device provides six independent unbuffered inverters with standard push-pull outputs and is capable of use within a mixed voltage environment due to the inputs being tolerant up to 5.5V. 74AHCU CMOS devices also have low power consumption. The ICs are suitable for use as an inverter within a crystal oscillator. A wide array of applications are available including PCs, networking, notebooks, netbooks, computer peripherals, hard drives, CD/DVD ROMs, TVs, DVDs, DVRs and set top boxes.<BR/>
74AHCU Family
Specifications
Maximum High Level Output Current
-4mA
Maximum Operating Temperature
+125 °C
Number of Elements per Chip
6
Length
8.74mm
Schmitt Trigger Input
No
Minimum Operating Supply Voltage
2 V
Maximum Propagation Delay Time @ Maximum CL
13.5 ns @ 50 pF
Brand
DiodesZetex
Propagation Delay Test Condition
50pF
Package Type
SOIC
Mounting Type
Surface Mount
Input Type
Schmitt Trigger
Minimum Operating Temperature
-40 °C
Width
3.99mm
Logic Family
AHCU
Height
1.48mm
Logic Function
Inverter
Output Type
Push-Pull
Maximum Operating Supply Voltage
5.5 V
Pin Count
14
Dimensions
8.74 x 3.99 x 1.48mm
Maximum Low Level Output Current
8mA
