2234 x Panasonic DSC550100L NPN Bipolar Transistor 500mA, 20V, 3-Pin SMini3 F2 B - Panasonic
roll over the image to zoom in
£0.00
£272.99
RS 712-5793
Unit Quantity:
2234
Unit Type:
Unit
Location:
APR BOX Q
Panasonic
Panasonic DSC550100L NPN Bipolar Transistor, 500 mA, 20 V, 3-Pin SMini3 F2 B
- BMUK Part # : 712-5793
- BrandPanasonic
- Mfr. Part No.DSC550100L
- You will get 2234 Transistors on 1 Reel

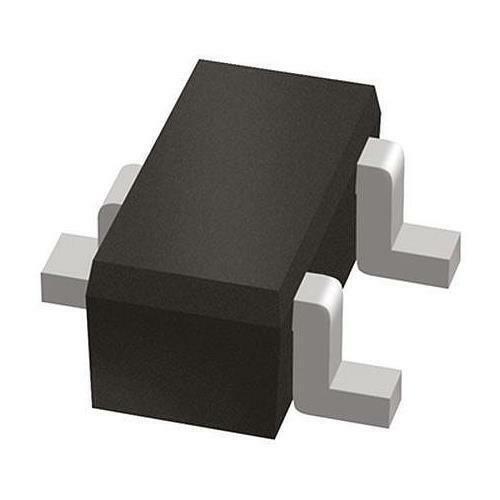

Image representative of range
Product Details
Small Signal NPN Transistors, Panasonic
Bipolar Transistors, Panasonic
Specifications
| Transistor Type | NPN | |
| Maximum DC Collector Current | 500 mA | |
| Maximum Collector Emitter Voltage | 20 V | |
| Package Type | SMini3 F2 B | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 150 mW | |
| Minimum DC Current Gain | 200 | |
| Maximum Collector Base Voltage | 25 V | |
| Maximum Emitter Base Voltage | 12 V | |
| Maximum Operating Frequency | 150 MHz | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Temperature | +150 °C | |
| Height | 0.8mm | |
| Maximum Collector Emitter Saturation Voltage | 0.4 V | |
| Width | 1.25mm | |
| Maximum Base Emitter Saturation Voltage | 1.2 V | |
| Dimensions | 2 x 1.25 x 0.8mm | |
| Length | 2mm |
