20 x Fairchild BC548CTA NPN Bipolar Transistor, 100 mA 30 V, 3-pin TO-92 - Fairchild

roll over the image to zoom in

£0.00
£5.49
RS 803-1106 x 20
Earn0
reward points

In stock: 81

Sorry! We're out of stock

Add To Your Wishlist


    Fairchild

    20 x Fairchild BC548CTA NPN Bipolar Transistor, 100 mA 30 V, 3-pin TO-92

    Shop Categories
    NEW RELEASES
    FEATURED PRODUCTS
    20 x Fairchild BC548CTA NPN Bipolar Transistor, 100 mA 30 V, 3-pin TO-92
    Fairchild BC548CTA NPN Bipolar Transistor, 100 mA 30 V, 3-pin TO-92

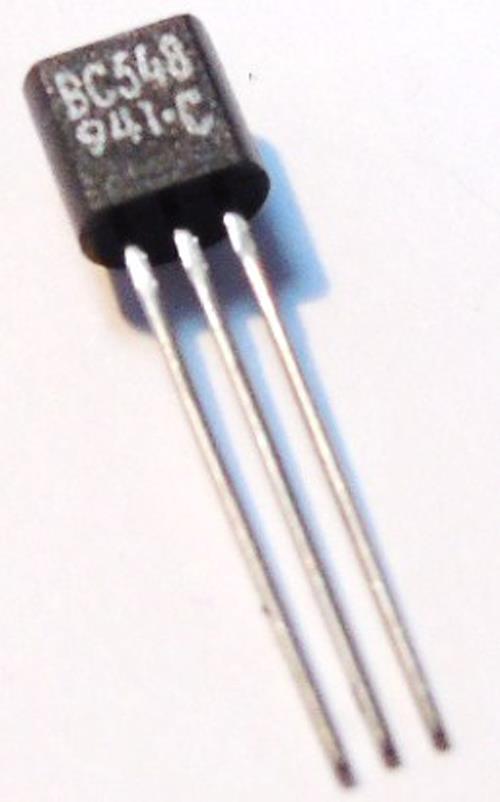

    Image representative of range

    Product Details

    Small Signal NPN Transistors, Fairchild

    Bipolar Transistors, Fairchild Semiconductor

    Specifications
    CategorySwitching
    ConfigurationSingle
    Dimensions4.58 x 3.86 x 4.58mm
    Height4.58mm
    Length4.58mm
    Maximum Base Emitter Saturation Voltage900 mV
    Maximum Collector Base Voltage30 V
    Maximum Collector Emitter Saturation Voltage600 mV
    Maximum Collector Emitter Voltage30 V
    Maximum DC Collector Current100 mA
    Maximum Emitter Base Voltage5 V
    Maximum Operating Frequency1 MHz
    Maximum Operating Temperature+150 °C
    Maximum Power Dissipation500 mW
    Minimum DC Current Gain110
    Mounting TypeThrough Hole
    Number of Elements per Chip1
    Package TypeTO-92
    Pin Count3
    Transistor TypeNPN
    Width3.86mm

    For a Specification PDF Please CLICK HERE
