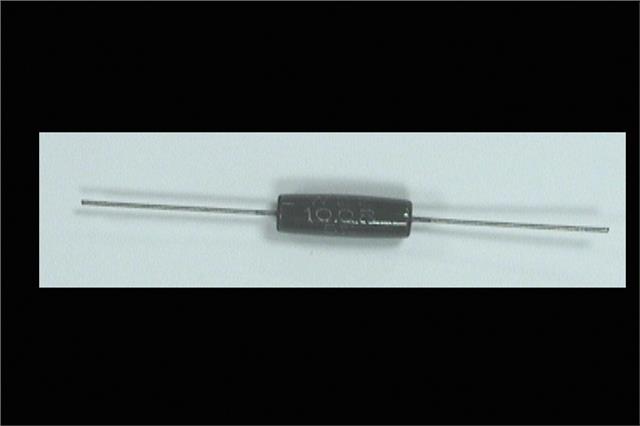

2 x WELWYN W22-100 R JI 100 Ω ohms Power Resistor Wire wound 7 Watt ± 5 % - Welwyn
roll over the image to zoom in
£0.00
£7.99
Welwyn R22 100 Ohm
Type:
Power Wirewound Resistor
Resistance Rating:
100 Ω
Tolerance Rating:
±5 %
Series:
W22
Welwyn
Through Hole Mount Wire Wound Resistor 100 Ω ohms 7 Watt
You will Receive 2 Resistors.
Specifications Available below:
Shop Categories  NEW RELEASES FEATURED PRODUCTS | 2 x WELWYN W22-100 R JI 100 Ω ohms Power Resistor Wire wound 7 Watt ± 5 %
|    |
| Power at 70°C | 6W |
| Power at 25°C | 7W |
| Resistance Tolerance | ±5% |
| Temperature Coefficient | ±75ppm/°C |
| Operating Temperature | -55°C → +350°C |
| Limiting Element Voltage | 200V |
| Body Length | 22 mm |
| Body Diameter | 8 mm |
| Lead Length | 23.1 mm |
| Lead Diameter | 0.8 mm |
