2 x TruConnect 20.162.2 4mm Flexible Safety Probe 30V 10A Black - TruConnect
roll over the image to zoom in
£0.00
£5.99
Rapid 17-3263
Unit Quantity:
2
Unit Type:
Unit
TruConnect
Order Code: 17-3263
MPN : 20.162.2

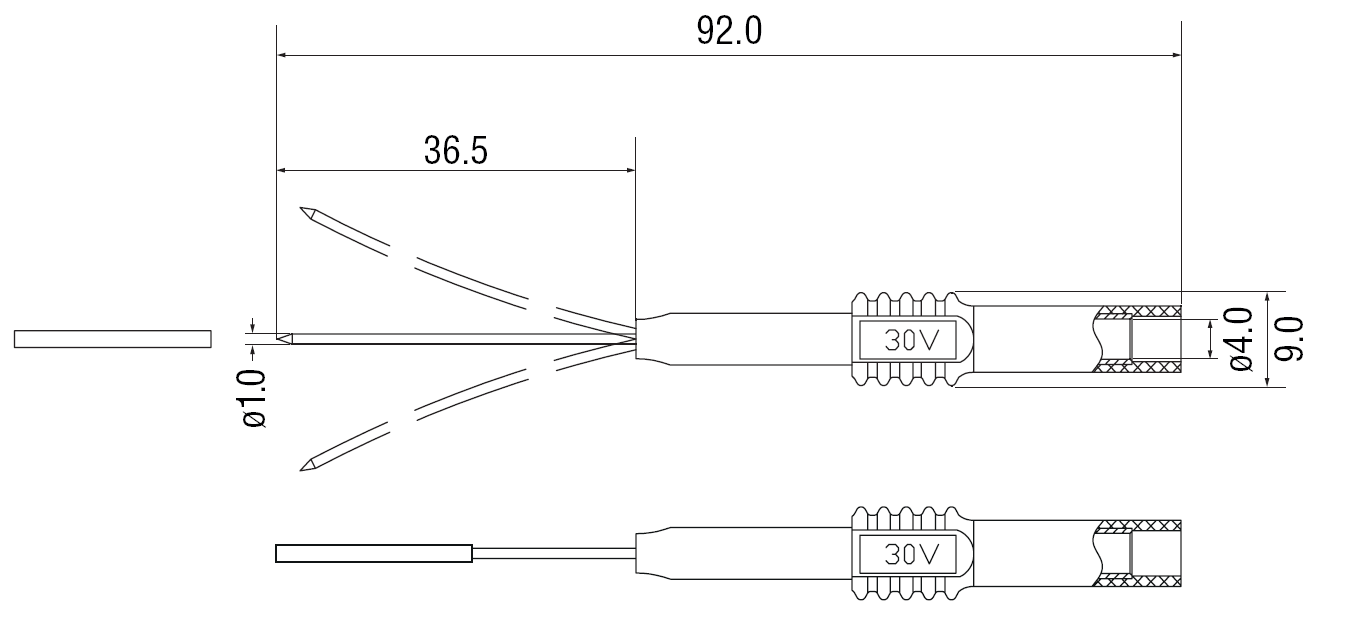

A black safety test clip that has a 4mm socket extension. Its long, sharp stainless steel tip and flexible spring within the silicone tube body mean that this clip is ideal for a wide range of test applications.
Please visit our shop to see all our other items we have in stock,
Many thanks!
Nichicon Aluminium Polymer Capacitor 330μF 2.5 V dc 6.3mm Through Hole LS Series Lifetime 5000h
Product Details
LS Series Solid Electrolytic Radial
Solid Radial 105°C
Add product to Compare
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Capacitance | 330 µF | |
| Technology | Polymer | |
| Voltage | 2.5 V dc | |
| Dimensions | 6.3 (Dia.) x 9mm | |
| Height | 9mm | |
| Diameter | 6.3mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
| Lead Pitch | 2.5mm | |
| Construction | Radial | |
| Series | LS | |
| Terminal Type | Through Hole | |
| Lifetime | 5000h | |
| Leakage Current | 500 μA | |
| Board Level Components | Y | |
| Lead Diameter | 0.6mm | |
| Ripple Current | 4.8A | |
| Tolerance Minus | -20% | |
| Tolerance | ±20% | |
| Tolerance Plus | +20% | |
| Equivalent Series Resistance | 8mΩ |
