2 x STD12NF06L MOSFET Transistor 12A 60V N-Chan Logic Level Arduino Raspberry PI - STMicroelectronics
roll over the image to zoom in
£0.00
£5.99
RS 485-7305 x 2
Unit Quantity:
2
Unit Type:
Unit
Location:
TS BRA-3K
STMicroelectronics

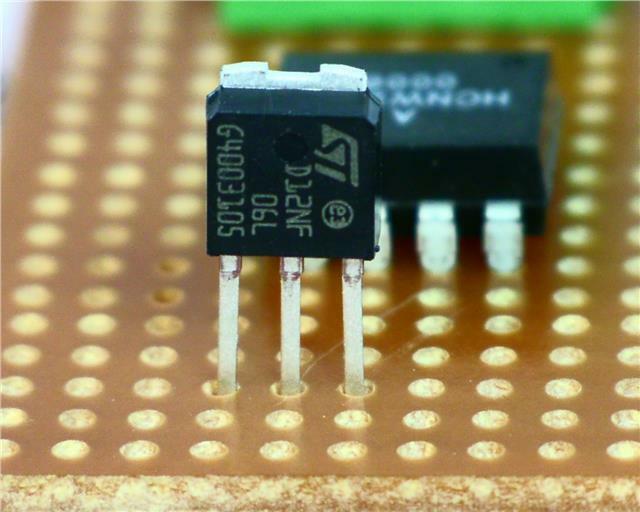

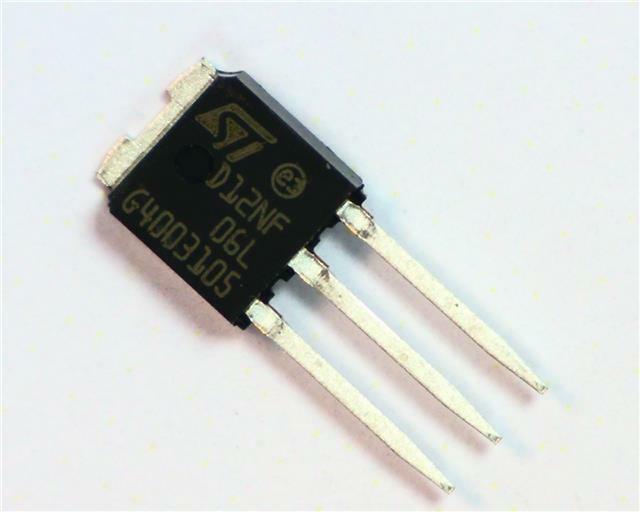

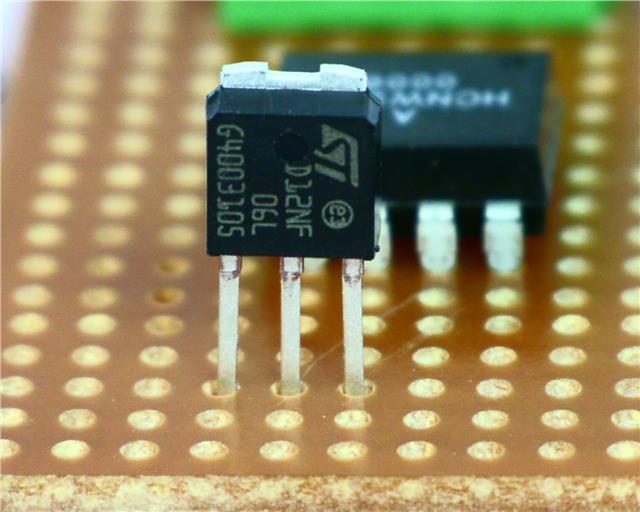

STMicroelectronics STD12NF06L-1 N-channel MOSFET Transistor, 12A 60V, 3-Pin IPAK
- BMUK Part # :-485-7305
- BrandSTMicroelectronics
- Mfr. Part No.STD12NF06L-1
- You will get a pack of 2 MOSFETS,
- These are LOGIC LEVEL Devices perfect for Arduino, Raspberry PI & PIC interfacing etc
 |
Product Details
N-Channel STripFET™, STMicroelectronics
MOSFET Transistors, STMicroelectronics
Specifications
| Channel Type | N | |
| Maximum Continuous Drain Current | 12 A | |
| Maximum Drain Source Voltage | 60 V | |
| Maximum Drain Source Resistance | 0.1 Ω | |
| Maximum Gate Threshold Voltage | 2V | |
| Minimum Gate Threshold Voltage | 1V | |
| Maximum Gate Source Voltage | ±16 V | |
| Package Type | IPAK | |
| Mounting Type | Surface Mount | |
| Pin Count | 3 | |
| Channel Mode | Enhancement | |
| Category | Power MOSFET | |
| Maximum Power Dissipation | 30 W | |
| Configuration | Single | |
| Typical Gate Charge @ Vgs | 7.5 nC @ 5 V | |
| Length | 6.6mm | |
| Dimensions | 6.6 x 6.2 x 2.4mm | |
| Minimum Operating Temperature | -55 °C | |
| Maximum Operating Temperature | +175 °C | |
| Width | 6.2mm | |
| Number of Elements per Chip | 1 | |
| Typical Turn-On Delay Time | 10 ns | |
| Height | 2.4mm | |
| Typical Input Capacitance @ Vds | 350 pF @ 25 V | |
| Typical Turn-Off Delay Time | 20 ns |
