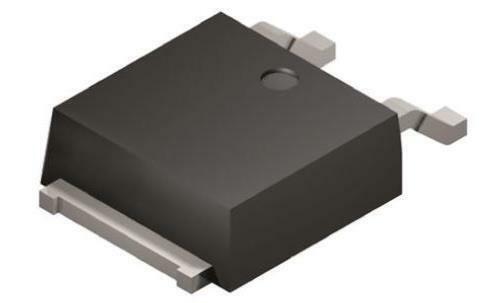

STMicroelectronics STB13N80K5 N-channel MOSFET Transistor, 3-pin D2PAK

You get a pack of 2 Mosfets,

BMUK Part # :-792-5704

BrandSTMicroelectronics

Mfr. Part No.STB13N80K5



Thank you your term has been submitted

The 3D viewer requires the Java Runtime Environment (JRE) and for Java to be enabled on your system.

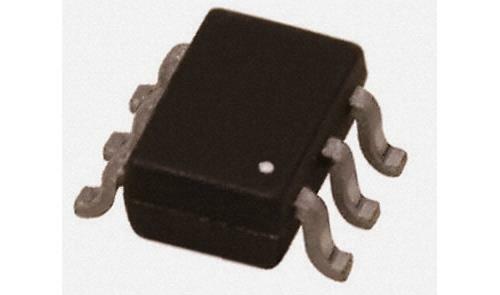

Image representative of range

Product Details

N-channel MDmesh™ K5 series, SuperMESH5™, STMicroelectronics

MOSFET Transistors, STMicroelectronics



Specifications



	Category	Power MOSFET
	Channel Mode	Enhancement
	Channel Type	N
	Configuration	Single
	Dimensions	10.4 x 9.35 x 4.6mm
	Height	4.6mm
	Length	10.4mm
	Maximum Continuous Drain Current	12 A
	Maximum Drain Source Resistance	0.45 Ω
	Maximum Drain Source Voltage	800 V
	Maximum Gate Source Voltage	±30 V
	Maximum Operating Temperature	+150 °C
	Maximum Power Dissipation	190 W
	Minimum Operating Temperature	-55 °C
	Mounting Type	Surface Mount
	Number of Elements per Chip	1
	Package Type	D2PAK
	Pin Count	3
	Typical Gate Charge @ Vgs	29 nC@ 10 V
	Typical Input Capacitance @ Vds	870 pF@ 100 V
	Typical Turn-Off Delay Time	42 ns
	Typical Turn-On Delay Time	16 ns
	Width	9.35mm

Specification PDF Please CLICK HERE
