2 x Panasonic AN44066A-VF, Stepper Motor Driver IC, 32-pin SSOP - Panasonic

roll over the image to zoom in

£0.00
£4.99
RS 726-4028
Earn0
reward points

In stock: 375

Sorry! We're out of stock

Add To Your Wishlist
    Location:
    APR BOX i BLUE


    Panasonic

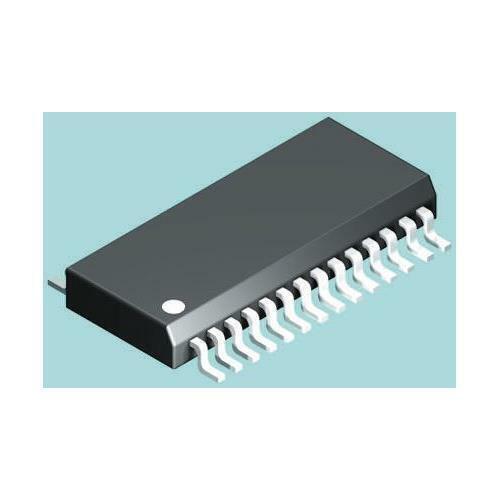

    Panasonic AN44066A-VF, Stepper Motor Driver, 32-pin SSOP

    You are looking at a pack of 2 Stepper Motor Drivers in SM Tape, Multi Buys come on one long tape,

    Specifications
    ApplicationStepping Motor Driver
    Dimensions11 x 6.1 x 1.9mm
    Height1.9mm
    Inverter Power Rating0.427W
    Length11mm
    Maximum Collector Emitter Voltage33.69 V
    Maximum IGBT Collector Current800mA
    Maximum Operating Supply Voltage           34 V
    Maximum Operating Temperature+70 °C
    Minimum Operating Supply Voltage10 V
    Minimum Operating Temperature-20 °C
    Mounting TypeSurface Mount
    Package TypeSSOP
    Pin Count32
    Typical Switching Frequency52kHz
    Width6.1mm

    For a Specification PDF Please CLICK HERE

    Thank you for looking, if you have any questions please ask or call us.

    Please see our other items for a wide range of Electronic components.
