2 x Osram Opto SFH 9206 SMT Reflective Sensor, Phototransistor Output - OSRAM Opto Semiconductors
roll over the image to zoom in
£0.00
£7.49
RS 778-1396
Unit Quantity:
2
Unit Type:
Unit
Location:
ES-10A
OSRAM Opto Semiconductors
SFH 9206 Osram Opto SMT Reflective Sensor, Phototransistor Output
- BMUK Part # :-778-1396
- BrandOSRAM Opto Semiconductors
- Mfr Part No.SFH 9206
- You will get a pack of 2 Sensors
Product Details

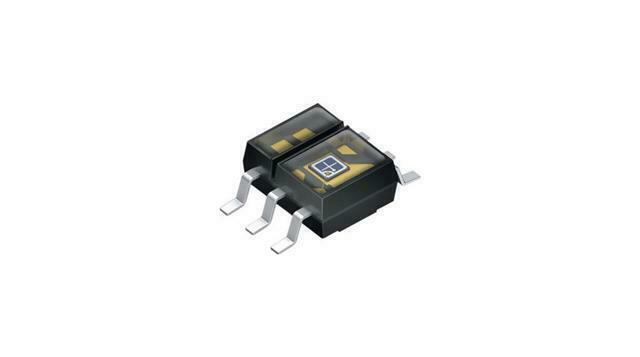

SFH 9206 SMT Reflective Sensors
The SFH 9206 family from OSRAM Opto Semiconductors are reflective sensors with a phototransistor output. They come in a surface-mounted (SMD) package containing and 950 nm LED and a silicon NPN phototransistor. The package also features a daylight filter.
Suitable applications for the SFH 9206 reflective sensors include; position reporting, end position switch, speed regulation and motion transmitters.
Reflective Optical Sensors, OSRAM Opto Semiconductors
Specifications
Number of Channels
1
Typical Rise Time
30µs
Operating Temperature Range
-40 → +100°C
Dimensions
6.2 x 2.1 x 4.2mm
Brand
OSRAM Opto Semiconductors
Peak Sensor Distance
5mm
Length
6.2mm
Package Type
SMD
Height
4.2mm
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+100°C
Width
2.1mm
Number of Pins
6
Mounting Type
Surface Mount
Typical Fall Time
40µs
Output Device
Phototransistor
