2 x ON Semiconductor MC14585BCPG, 4-Bit, Magnitude Comparator, 16-Pin - Texas Instruments
roll over the image to zoom in
£0.00
£4.99
RS 519-0726
Unit Quantity:
2
Unit Type:
Unit
Location:
TS 59Q
Texas Instruments

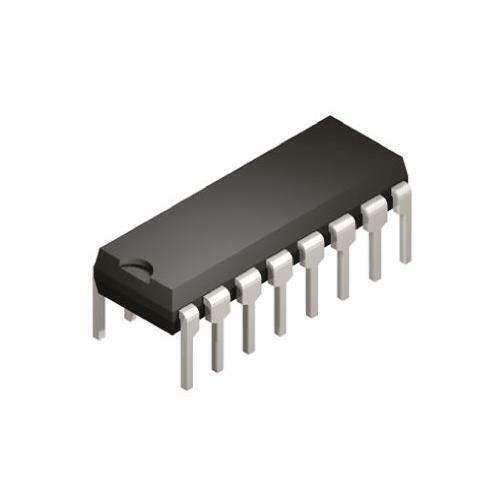

ON Semiconductor MC14585BCPG, 4-Bit, Magnitude Comparator, Non-Inverting, 16-Pin PDIP
- BMUK Part # :- 519-0726
- BrandON Semiconductor
- Mfr. Part No.MC14585BCPG
-
- You will get a pack of 2 Comparators
Product Details
4000 Series Logic Comparators, ON Semiconductor
4000 CMOS Logic Family, ON Semiconductor
CMOS Family devices
Wide operating voltage range: 3 to 18V
Specifications
| Logic Family | 4000 | |
| Logic Function | Magnitude Comparator | |
| Output Function | AB | |
| Number of Bits | 4 | |
| Polarity | Non-Inverting | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 16 | |
| Maximum High Level Output Current | -4.2mA | |
| Maximum Low Level Output Current | 4.2mA | |
| Maximum Propagation Delay Time @ Maximum CL | 260 ns@ 15 V, 360 ns@ 10 V, 860 ns@ 5 V | |
| Dimensions | 19.55 x 6.85 x 3.43mm | |
| Height | 3.43mm | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -55 °C | |
| Length | 19.55mm | |
| Maximum Operating Supply Voltage | 18 V | |
| Minimum Operating Supply Voltage | 3 V | |
| Propagation Delay Test Condition | 50pF | |
| Width | 6.85mm |
Please visit our shop to see all our other items we have in stock,
Many thanks!
