Manufacturer: ON Semiconductor
Product Category: Operational Amplifiers - Op Amps
Mounting Style: Through Hole

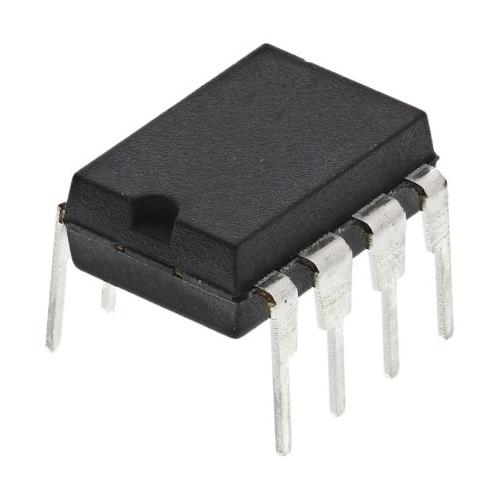

Package/Case: PDIP-8
Supply Voltage - Max: 32 V
Output Current per Channel: 40 mA
Number of Channels: 2 Channel
GBP - Gain Bandwidth Product: 1 MHz
SR - Slew Rate: 0.6 V/us
CMRR - Common Mode Rejection Ratio: 50 dB
Ib - Input Bias Current: 100 nA
Vos - Input Offset Voltage: 7 mV
Supply Voltage - Min: 3 V
Operating Supply Current: 1.2 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 105 C
Shutdown: No Shutdown
Series: LM2904A
Packaging: Tube
Amplifier Type: General Purpose Amplifier
Height: 5.33 mm (Max)
Length: 9.27 mm
Product: Operational Amplifiers
Supply Type: Single, Dual
Technology: Bipolar
Width: 6.35 mm
Brand: ON Semiconductor
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
Maximum Dual Supply Voltage: +/- 16 V
Minimum Dual Supply Voltage: +/- 1.5 V
Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
Product Type: Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio: 50 dB
Factory Pack Quantity: 1000
Subcategory: Amplifier ICs
Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 5.7 V
Voltage Gain dB: 100 dB
