2 x NXP N-channel MOSFET Transistor PSMN4R6-60BS, 100A, 60V, 3-Pin - NXP
roll over the image to zoom in
£0.00
£7.99
RS 798-2987
Unit Quantity:
2
Unit Type:
Unit
Location:
TS 26L
NXP

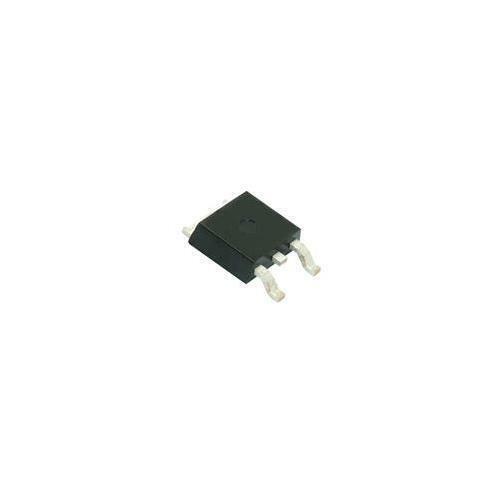

NXP PSMN4R6-60BS N-channel MOSFET Transistor, 100 A, 60 V, 3-Pin D2PAK
- BMUK Part # :-798-2987
- BrandNXP
- Mfr. Part No.PSMN4R6-60BS
-
- You will get a pack of 2 Transistors
Product Details
N-Channel MOSFET, over 100A, NXP Semiconductors
MOSFET Transistors, NXP Semiconductors
Specifications
| Channel Type | N | |
| Maximum Continuous Drain Current | 100 A | |
| Maximum Drain Source Voltage | 60 V | |
| Maximum Drain Source Resistance | 0.007 Ω | |
| Maximum Gate Threshold Voltage | 4V | |
| Minimum Gate Threshold Voltage | 2V | |
| Maximum Gate Source Voltage | ±20 V | |
| Package Type | D2PAK | |
| Mounting Type | Surface Mount | |
| Transistor Configuration | Single | |
| Pin Count | 3 | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation | 211 W | |
| Dimensions | 10.3 x 11 x 4.5mm | |
| Length | 10.3mm | |
| Maximum Operating Temperature | +175 °C | |
| Height | 4.5mm | |
| Typical Turn-Off Delay Time | 58 ns | |
| Number of Elements per Chip | 1 | |
| Width | 11mm | |
| Typical Input Capacitance @ Vds | 4426 pF @ 30 V | |
| Typical Gate Charge @ Vgs | 70.8 nC @ 10 V | |
| Minimum Operating Temperature | -55 °C | |
| Typical Turn-On Delay Time | 26 ns | |
| Transistor Material | Si |
