2 x NXP Analogue Switch Quad SPST, HEF4066BP,652, 12V, 5V, 9V, 14-Pin - NXP
roll over the image to zoom in
£0.00
£5.99
RS 307-200
Unit Quantity:
2
Unit Type:
Unit
Location:
BRA10H
NXP

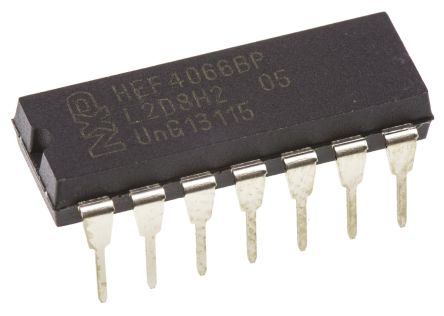

NXP HEF4066BP,652, Analogue Switch Quad SPST, 12 V, 5 V, 9 V, 14-Pin PDIP
- BMUK Part # :-307-200
- BrandNXP
- Mfr. Part No.HEF4066BP,652
-
- You will get a pack of 2 ICs
Product Details
4000 Series Encoders/Decoders, Multiplexers/Demultiplexers, NXP Semiconductors
4000 CMOS Logic Family, NXP Semiconductors
CMOS Family devices
Wide operating voltage range: 3 to 18V
Specifications
| Configuration | Quad SPST | |
| Package Type | PDIP | |
| Mounting Type | Through Hole | |
| Typical Single Supply Voltage | 5 V, 9 V, 12 V | |
| Switch Type | Analogue | |
| Pin Count | 14 | |
| Power Supply Type | Single | |
| Input Signal Type | Single Ended | |
| Output Signal Type | Single Ended | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Number of Channels per Chip | 4 | |
| Dimensions | 19.5 x 6.48 x 3.2mm | |
| Maximum Power Dissipation | 750 mW | |
| Height | 3.2mm | |
| Length | 19.5mm | |
| Width | 6.48mm |
To view the datasheet please Click Here
