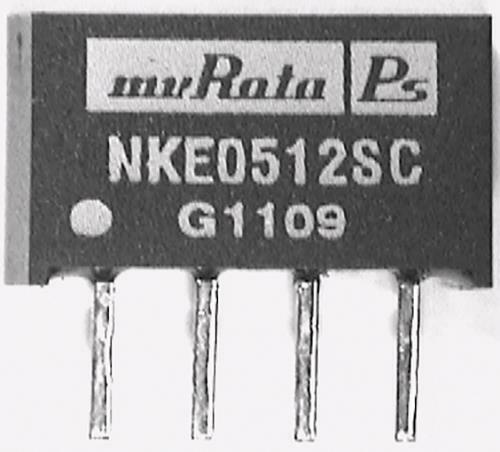

2 x Murata NKE0512SC 1W Isolated DC-DC Converter Vin 4.5 - 5.5 VDC, Vout 12V DC - Murata

roll over the image to zoom in

£0.00
£17.99
RS 689-5015
Earn0
reward points

In stock: 8

Sorry! We're out of stock

Add To Your Wishlist


    Murata

    1W Isolated DC-DC Converter, Vin 4.5 → 5.5 V dc, Vout 12V dc, 3kV dc

    You will get 2 DC Converters in a Bubble Wrap Bag


    Product Details

    Murata 1W SIP Single Output Unregulated Isolated DC-DC Converter - NKE Series

    SIP-4 package, 3kVdc isolation
    Fully encapsulated, UL 94V-0 package material
    Wide Temperature performance at full 1 Watt load, –40°C to 85°C

    Approvals

    UL 60950

     Specifications

    Depth7.46mm
    Input Voltage Nominal5 V dc
    Input Voltage Range4.5 → 5.5 V dc
    Isolation Voltage3kV dc
    Length11.48mm
    Maximum Temperature        +85°C
    Minimum Temperature-40°C
    Mounting TypeThrough Hole
    Number of Outputs1
    Output Current0.083A
    Output Voltage12V dc
    PackageSIP
    Power Rating1W
    Width6mm

    For a Specification PDF Please CLICK HERE

    Thank you for looking, if you have any questions please ask or call us.


    Please see our other items for a wide range of Electronic components.
