2 x Molex 1.25mm Pitch 30 Way Straight Female FPC Connector, Through Hole Series - Molex
£0.00
£7.99
RS 688-3264
Unit Quantity:
2
Unit Type:
Unit
Location:
TS-LB 4J
Molex

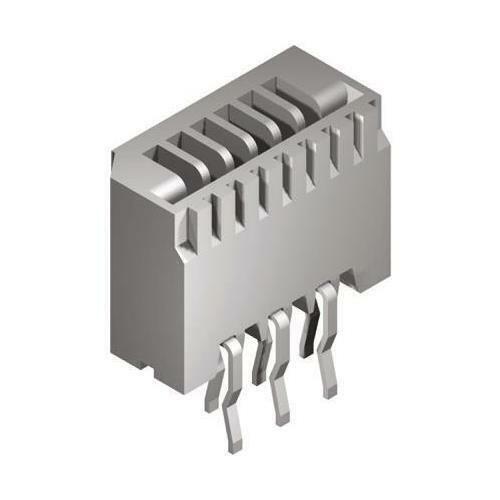

Molex FFC/FPC THROUGH HOLE Series 1.25mm Pitch 30 Way Straight Female FPC Connector, Vertical Contact
- BMUK Part # :-688-3264
- BrandMolex
- Mfr. Part No.52045-3045
-
- You will get a pack of 2 Connectors

Product Details
FFC/FPC Connectors, 52045 Series
Direct Wire to Board connector for FFC with Non-ZIF.
1.25mm FFC
A compact and reliable interconnection technology designed for use in signal and data applications that require high density flat flex for complex wiring harness.
ZIF through-hole FFC connectors and suitably prepared cable assemblies, to cater for most applications requiring a 1.25mm pitch
Connectors incorporate an actuator which retains the cable once it is located correctly
ZIF version increases life and provides gas-tight connection
Good retention force and strain relief
Easy to install
Specifications
Number of Contacts | 30 | |
Contact Material | Phosphor Bronze | |
Pitch | 1.25mm | |
Mounting Type | Through Hole | |
Gender | Female | |
Termination Type | Vertical Contact | |
Body Orientation | Straight | |
Current Rating | 1A | |
Voltage Rating | 200 V | |
Series | FFC/FPC THROUGH HOLE | |
Series Number | 52045 | |
Number of Rows | 1 | |
Contact Plating | Tin | |
Minimum Operating Temperature | -40°C | |
Housing Material | PET | |
Termination Method | Solder | |
Maximum Operating Temperature | +85°C |
To view the datasheet please Click Here
