2 x Microchip Serial EEPROM Memory 24LC024H-I/P, 2kbit, 400ns, 2.5-5.5V 8-Pin - Microchip
roll over the image to zoom in
£0.00
£10.99
RS 667-8227
Unit Quantity:
2
Unit Type:
Unit
Location:
TS 5N Also BRA 9D
Microchip

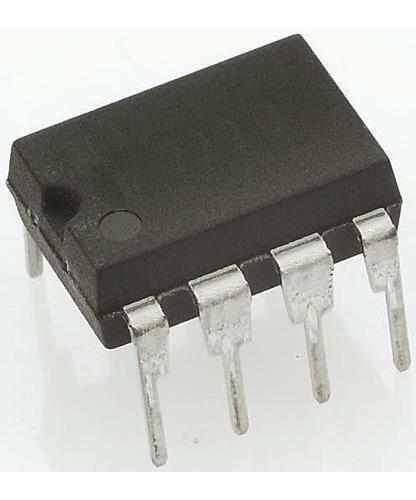

Microchip 24LC024H-I/P Serial EEPROM Memory, 2kbit, 400ns, 2.5 → 5.5 V 8-Pin PDIP
- BMUK Part # :-667-8227
- BrandMicrochip
- Mfr. Part No.24LC024H-I/P
-
- You will get a pack of 2 EEPROM
Product Details
24AA024H/24LC024H I²C™ Serial EEPROM
The Microchip 24AA024H/24LC024H range of devices is 2 Kbit I²C™ Serial EEPROMs available in a variety of packages, temperatures, and power supply variants.
Features
Single-Supply with Operation down to 1.7V – 24LC024 models onlyLow-Power CMOS Technology: 400 μA maximum active current, 1 μA maximum standby current
Organized as a Single Block of 256 Bytes (256 x 8)
2-Wire Serial Interface Bus, I2C™ Compatible
Schmitt Trigger Inputs for Noise Suppression
Output Slope Control to Eliminate Ground Bounce
100 kHz and 400 kHz Compatibility
1 MHz Compatibility (LC)
Page Write Buffer for up to 16 Bytes
Self-Timed Write Cycle (including Auto-Erase)
Hardware Write Protection for Half Array
Address Lines Allow up to Eight Devices on Bus
1 Million Erase/Write Cycles
ESD Protection > 4,000V
Data Retention > 200 Years
EEPROM Serial Access - Microchip
Specifications
| Memory Size | 2kbit | |
| Interface Type | Serial-I2C | |
| Package Type | PDIP | |
| Mounting Type | Through Hole | |
| Pin Count | 8 | |
| Organisation | 256 x 8 bit | |
| Minimum Operating Supply Voltage | 2.5 V | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Length | 9.27mm | |
| Width | 6.35mm | |
| Height | 3.3mm | |
| Dimensions | 9.27 x 6.35 x 3.3mm | |
| Maximum Operating Temperature | +85 °C | |
| Data Retention | 200yr | |
| Maximum Random Access Time | 400ns | |
| Minimum Operating Temperature | -40 °C |
