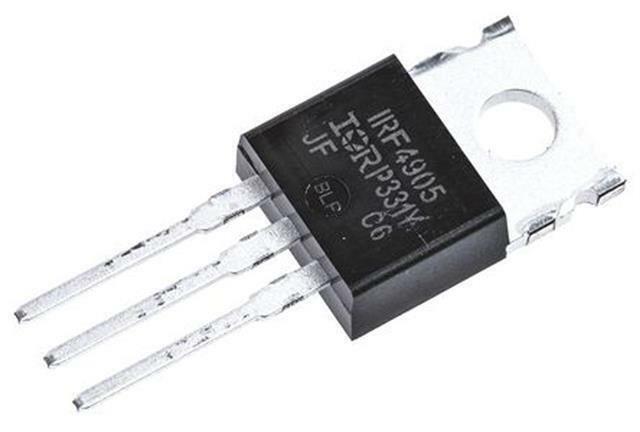

2 x International Rectifier IRF4905PBF P-channel MOSFET Transistor 74A 55V - International Rectifier

roll over the image to zoom in

£0.00
£5.99
RS 540-9799
Earn0
reward points

In stock: 50

Sorry! We're out of stock

Add To Your Wishlist


    International Rectifier

    International Rectifier IRF4905PBF P-channel MOSFET Transistor, 74 A, 55 V, 3-pin TO-220AB

    • BMUK Part # :-540-9799
    • BrandInternational Rectifier
    • Mfr. Part No.IRF4905PBF
    International Rectifier
    International Rectifier IRF4905PBF P-channel MOSFET Transistor, 74 A, 55 V, 3-pin TO-220AB


    Product Details

    P-Channel Power MOSFET over 8A, International Rectifier

    International Rectifier's range of discrete HEXFET® power MOSFETs includes P-channel devices in surface mount and leaded packages and form factors that can address almost any board layout and thermal design challenge. Across the range benchmark on resistance drives down conduction losses, allowing designers to deliver optimum system efficiency.

    https://uk.rs-online.com/largeimages/LBIPOLAR-09.gif



    MOSFET Transistors, International Rectifier

    International Rectifier’s comprehensive portfolio of rugged single- and dual- N-channel and P-channel devices offers fast switching speeds and addresses a wide variety of power requirements in applications ranging from AC-DC and DC-DC power supplies to audio and consumer electronics and from motor control to lighting and home appliances.

    Specifications
    CategoryPower MOSFET
    Channel ModeEnhancement
    Channel TypeP
    ConfigurationSingle
    Height8.77mm
    Maximum Continuous Drain Current                               74 A
    Maximum Drain Source Resistance0.02 Ω
    Maximum Drain Source Voltage55 V
    Maximum Gate Source Voltage±20 V
    Maximum Gate Threshold Voltage4V
    Maximum Operating Temperature+175 °C
    Maximum Power Dissipation200 W
    Minimum Gate Threshold Voltage2V
    Minimum Operating Temperature-55 °C
    Mounting TypeThrough Hole
    Number of Elements per Chip1
    Package TypeTO-220AB
    Pin Count3
    Typical Gate Charge @ Vgs180 nC@ 10 V
    Typical Input Capacitance @ Vds3400 pF@ 25 V
    Typical Turn-Off Delay Time61 ns
    Typical Turn-On Delay Time18 ns



    For a Specification PDF Please CLICK HERE
