2 x Infineon IRFB7437PBF N-channel MOSFET, 195A, 40V StrongIRFET, 3-Pin TO-220AB - Infineon
roll over the image to zoom in
£0.00
£7.99
RS 776-9179
Unit Quantity:
2
Unit Type:
Unit
Location:
TS BRA-10D
Infineon
Infineon IRFB7437PBF N-channel MOSFET, 195 A, 40 V StrongIRFET, 3-Pin TO-220AB
- BMUK Part # :-776-9179
- BrandInfineon
- Mfr Part No.IRFB7437PBF
-
- You will get 2 Transistor

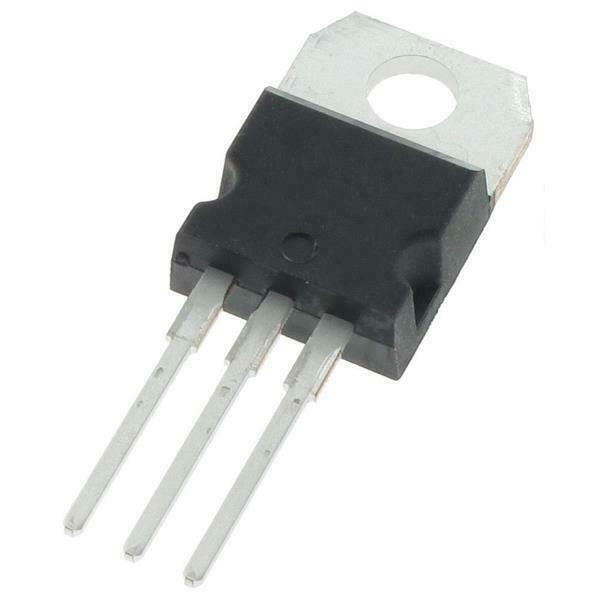

Image representative of range only
Product Details
StrongIRFET™ Power MOSFET, Infineon
Infineon's StrongIRFET family is optimized for low RDS(on) and high-current capability. This portfolio offers improved gate, avalanche and dynamic dv/dt ruggedness ideal for industrial low frequency applications including motor drives, power tools, inverters and battery management where performance and robustness are essential.
MOSFET Transistors, Infineon
Specifications
Maximum Operating Temperature
+175 °C
Number of Elements per Chip
1
Length
10.67mm
Transistor Configuration
Single
Typical Turn-On Delay Time
19 ns
Brand
Infineon
Typical Turn-Off Delay Time
78 ns
Maximum Continuous Drain Current
195 A
Package Type
TO-220AB
Maximum Power Dissipation
230 W
Series
StrongIRFET
Mounting Type
Through Hole
Minimum Operating Temperature
-55 °C
Width
4.83mm
Maximum Gate Threshold Voltage
3.9V
Height
16.51mm
Minimum Gate Threshold Voltage
2.2V
Maximum Drain Source Resistance
2 mΩ
Maximum Drain Source Voltage
40 V
Pin Count
3
Dimensions
10.67 x 4.83 x 16.51mm
Category
Power MOSFET
Typical Gate Charge @ Vgs
225 nC @ 10 V
Transistor Material
Si
Channel Mode
Enhancement
Typical Input Capacitance @ Vds
7330 pF@ 25 V
Channel Type
N
Maximum Gate Source Voltage
-20 V, +20 V
