2 x Infineon BSC026N02KS N-ch Logic Level MOSFET Transistor 100A 20V Arduino PWM - Infineon
roll over the image to zoom in
£0.00
£5.99
RS 752-8154
Unit Quantity:
2
Unit Type:
Unit
Location:
APR SHELF BOX 3 ALSO APR BOX G
Infineon

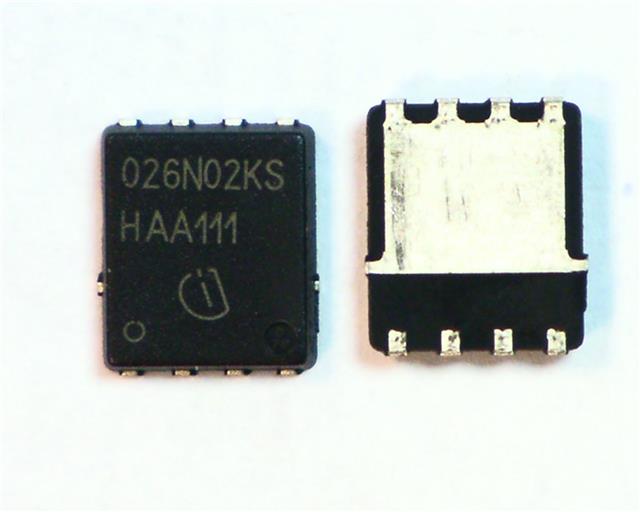

Infineon BSC026N02KS G N-channel MOSFET Transistor, 100A, 20V, 8-Pin TDSON
- BMUK Part # :-752-8154
- BrandInfineon
- Mfr. Part No.BSC026N02KS G
-
You will get 2 MOSFET's on SM Tape, Multi Buys come in one length,
These have Ultra Low GATE Voltage drive requirements and can be run from 3.3V or 5V logic
Product Details
Infineon OptiMOS™2 Power MOSFET Family
Infineon’s OptiMOS™2 N-Channel family offers the industry's lowest on-state resistance inside their voltage group. The Power MOSFET series can be used in many applications including high frequency Telecom, Datacom, solar, low voltage drives and Server Power Supplies. The OptiMOS 2 product family ranges from 20V and over and offers a selection of different package types.
MOSFET Transistors, Infineon
Infineon’s large and comprehensive portfolio of MOSFET devices includes the OptiMOS™ and CoolMOS™ families. These products deliver best-in-class performance from the latest generation of state-of-the-art power MOSFETs
Specifications
| Channel Type | N | |
| Maximum Continuous Drain Current | 100 A | |
| Maximum Drain Source Voltage | 20 V | |
| Maximum Drain Source Resistance | 0.0045 Ω | |
| Maximum Gate Threshold Voltage | 1.2V | |
| Minimum Gate Threshold Voltage | 0.7V | |
| Maximum Gate Source Voltage | ±12 V | |
| Package Type | TDSON | |
| Mounting Type | Surface Mount | |
| Transistor Configuration | Single | |
| Pin Count | 8 | |
| Channel Mode | Enhancement | |
| Category | Power MOSFET | |
| Maximum Power Dissipation | 2.8 W | |
| Typical Turn-On Delay Time | 21 ns | |
| Minimum Operating Temperature | -55 °C | |
| Transistor Material | Si | |
| Number of Elements per Chip | 1 | |
| Typical Gate Charge @ Vgs | 40 nC @ 4.5 V | |
| Width | 5.35mm | |
| Typical Turn-Off Delay Time | 52 ns | |
| Typical Input Capacitance @ Vds | 5900 pF @ 10 V | |
| Height | 1.1mm | |
| Length | 6.35mm | |
| Dimensions | 6.35 x 5.35 x 1.1mm | |
| Maximum Operating Temperature | +150 °C |
