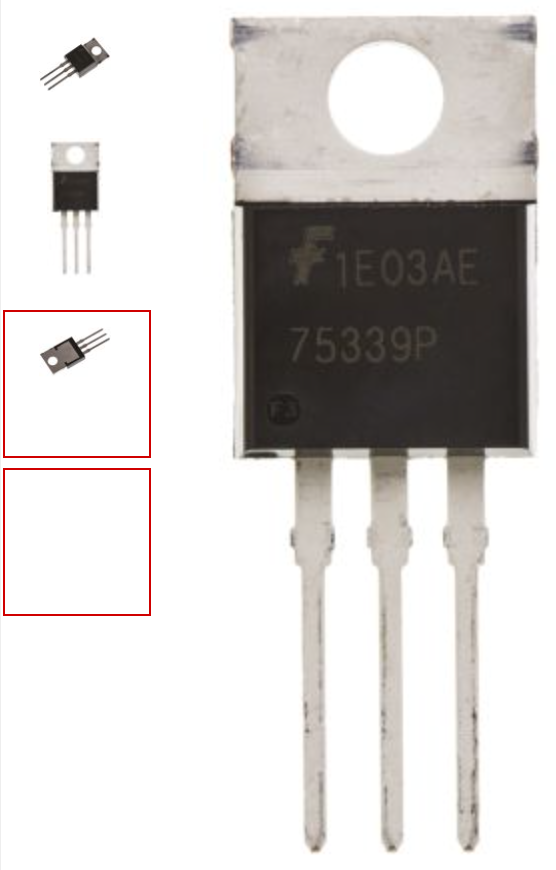

2 x Fairchild HUF75339P3 N-channel MOSFET 75A 55V UltraFET Arduino PWM TO-220AB - Fairchild Semiconductor
roll over the image to zoom in
£0.00
£6.99
RS 671-5363
Unit Quantity:
2
Unit Type:
Unit
Location:
ES-WS Shelf
Fairchild Semiconductor
ON Semiconductor HUF75339P3 N-channel MOSFET, 75A 55V UltraFET, 3-Pin TO-220AB
- BMUK Part No.671-5363
- BrandFairchild ON Semiconductor
- Mfr Part No.HUF75339P3
- You will get a pack of 2 MOSFET's
Product Details

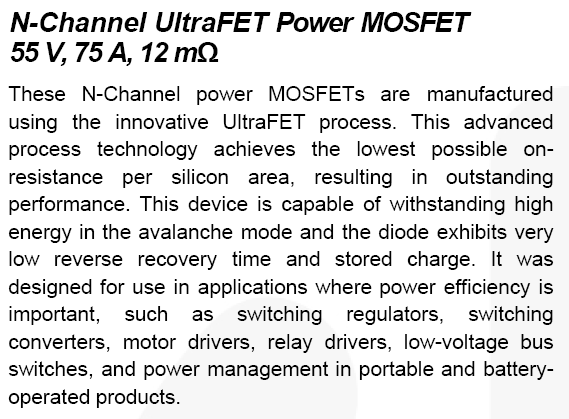

UltraFET® MOSFET, Fairchild Semiconductor
UItraFET® Trench MOSFET combine characteristics that enable benchmark efficiency in power conversion applications. The device is capable of withstanding high energy in the avalanche mode, and the diode exhibits very low reverse recovery time and stored charge. Optimised for efficiency at high frequencies, lowest RDS(on), low ESR, and low total and Miller gate charge.
Applications in high frequency DC to DC converters, switching regulators, motor drivers, low-voltage bus switches, and power management.
MOSFET Transistors, Fairchild Semiconductor
Specifications
Maximum Operating Temperature
+175 °C
Number of Elements per Chip
1
Length
10.67mm
Transistor Configuration
Single
Typical Turn-On Delay Time
15 ns
Brand
ON Semiconductor
Typical Turn-Off Delay Time
20 ns
Maximum Continuous Drain Current
75 A
Package Type

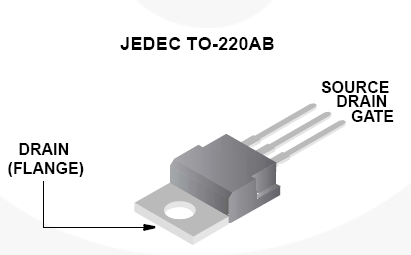

TO-220AB
Maximum Power Dissipation
200 W
Series
UltraFET
Mounting Type
Through Hole
Minimum Operating Temperature
-55 °C
Width
4.83mm
Height
9.4mm
Minimum Gate Threshold Voltage
2V
Maximum Drain Source Resistance
12 mΩ
Maximum Drain Source Voltage
55 V
Pin Count
3
Dimensions
10.67 x 4.83 x 9.4mm
Category
Power MOSFET
Typical Gate Charge @ Vgs
110 nC @ 20 V
Transistor Material
Si
Channel Mode
Enhancement
Typical Input Capacitance @ Vds
2000 pF@ 25 V
Channel Type
N
Maximum Gate Source Voltage
-20 V, +20 V
