2 x BHC B.H.C. Capacitors for Naim Audio PSU NAP140 NAP180 10,000uF 40V DC Power - BHC

roll over the image to zoom in

£0.00
£36.99
BHC 10000uF 40V
Earn0
reward points

In stock: 8

Sorry! We're out of stock

Add To Your Wishlist


    BHC

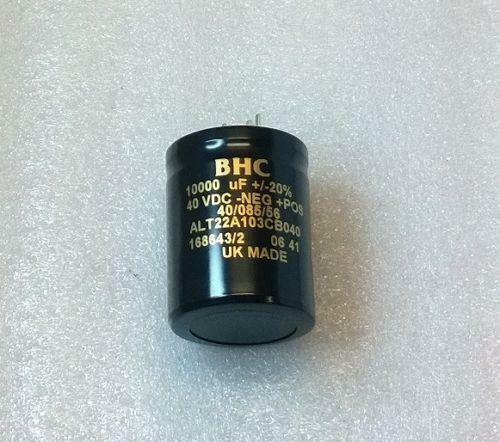

    You are looking at a pair of BHC 10,000uf 40V capacitors

    Kemet/BHC 10000μF ±20% 40V DC Through Hole Can Aluminium Electrolytic Capacitors

    These are BRAND NEW, Old Stock Capacitors in original packing,

    Ideal for Naim Audio PSU NAP180 NAP140 etc

    ALT22A Series - Clamp mounting

    High grade capacitors featuring high life expectancy
    High CV per unit volume
    Low ESR and impedance values and high ripple currents
    Ideally suited for switch mode power supplies and energy storage circuits in industrial applications

    Clamp fixing not supplied. The can will be at the negative terminal potential.



    Temperature Range-40 to 85 °C
    Insulation Voltage Proof          >2500Vdc
    Leakage Current<0.006CV or <6mA whichever is smaller
    TerminalsSolder Tags
    Life Expectancy (hrs)18000



     .Specifications
    Capacitance10000µF
    ConstructionCan
    Diameter35mm
    Dimensions35 Dia. x 45mm
    Height45mm
    Leakage Current2400 μA
    Lifetime18000h
    Maximum Operating Temperature            +85°C
    Minimum Operating Temperature-40°C
    Mounting TypeThrough Hole
    Tolerance±20%
    Tolerance Minus-20%
    Tolerance Plus+20%
    Voltage40 V dc
