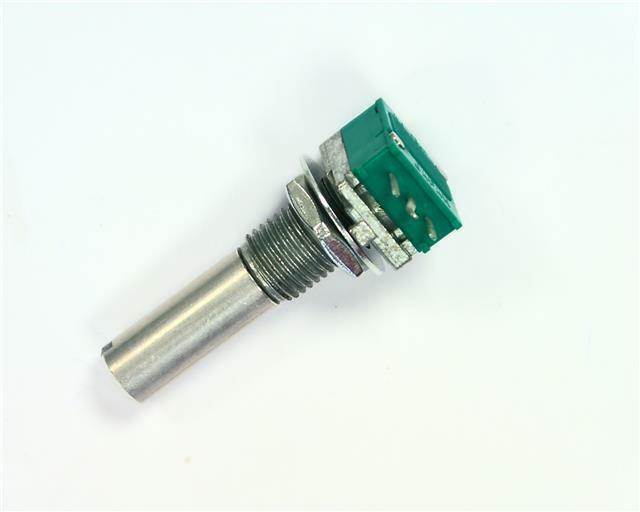

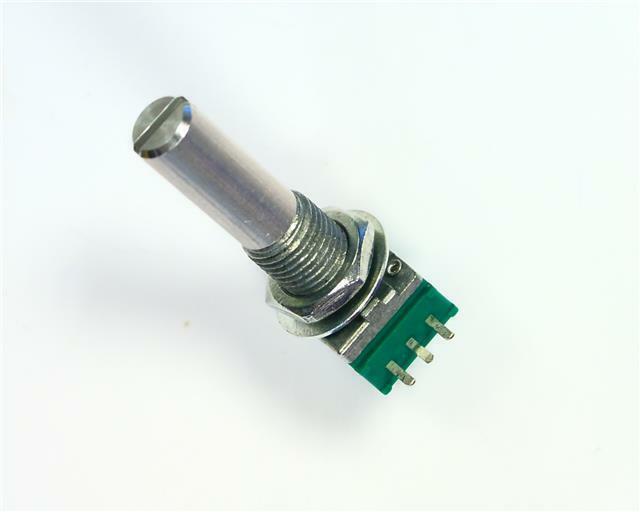

2 x Alps RK097 Carbon Film Potentiometer with a 6 mm Dia. Shaft, 100kΩ LIN - Alps
roll over the image to zoom in
£0.00
£7.99
RS 249-9143
Unit Quantity:
2
Unit Type:
Unit
Location:
ES
Alps
Alps RK097 Series Carbon Film Potentiometer with a 6 mm Dia. Shaft, 100kΩ, ±20%, 0.05W, Panel Mount (Through Hole)
- BMUK Part # :-249-9143
- BrandAlps
- Mfr. Part No.RK0971110700
- You will get a pack of 2 potentiometers
Product Details
9mm Metal Shaft
Compact size
End slotted metal shaft
PCB and panel mountable
Insert moulding prevents flux build-up
Linear or logarithmic tracks
Operating temperature: -25 → +70°C
300° rotation
±20% tolerance
| Rotational life | 15000 Cycles |
| Dimensions body: | W. 9.5, H. 11.35 |
| Body depth | 7.05mm (single) 9.55 (dual) |
| Mounting bush | Ø7.35, L.7 (single), L.10 (dual) |
| Shaft | Ø6, L.13 (single), L.15 (dual |
Supplied with
metal nut and washer, ideal for volume, tone and balance controls in audio application
Specifications
| Maximum Resistance | 100 kΩ | |
| Number of Turns | 1 | |
| Potentiometer Type | Linear | |
| Mounting Type | Panel Mount, Through Hole | |
| Shaft Diameter | 6 mm | |
| Mounting Hole Diameter | 7mm | |
| Power Rating | 0.05W | |
| Termination Style | Pin | |
| Tolerance | ±20% | |
| Series | RK097 | |
| Length | 9.5mm | |
| Depth | 7.05mm | |
| Height | 11.35mm | |
| Dimensions | 9.5 x 7.05 x 11.35mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C |
