1x Vishay BPW21R Visible Light Si Photodiode 50 ° Light Meter Detector Eye TO-5 - Vishay

roll over the image to zoom in

£0.00
£19.99
RS 177-7627
Earn0
reward points

In stock: 93

Sorry! We're out of stock

Add To Your Wishlist
    Type:
    Photo Diode
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    ES 14C


    Vishay

    Vishay, BPW21R Visible Light Si Photodiode, 50 °, Through Hole TO-5


    • BMUK Stock No.177-7627
    • Brand
    • Mfr Part No.BPW21R
    •
    • You will get ONE photodiode










    Product Details

    BPW20 and BPW21 Series Photodiodes

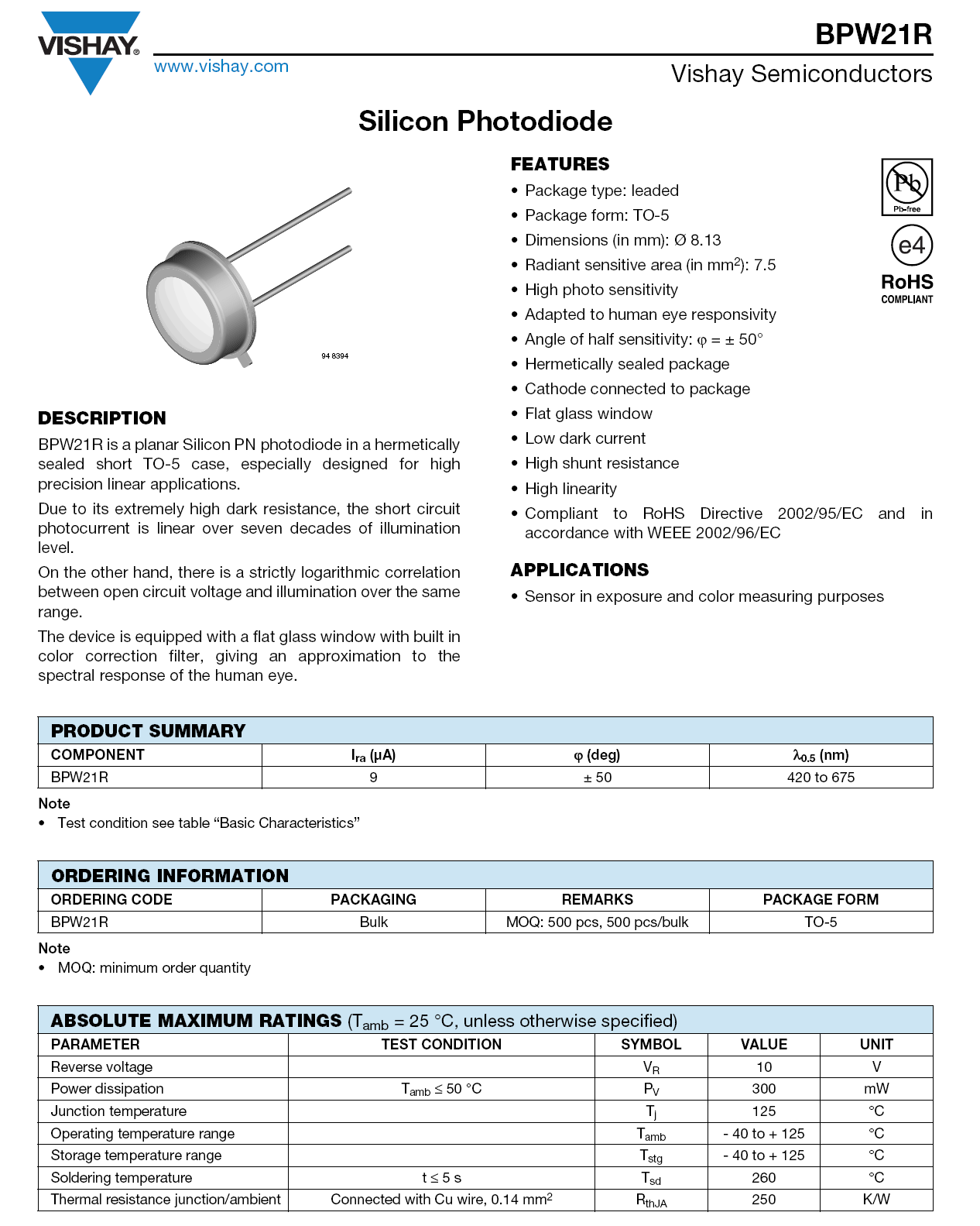

    download-7.pngThe BPW20 and BPW21 series of silicon photodiodes, from Vishay Semiconductor, are in standard TO-5 packages. These packages have been hermtically sealed, making the BPW20 and BPW21 ideal for high precision linear applications. Suitable applications for the BPW20 and BPW21 photodiodes include; sensors for light measuring in cameras, photometers, colour analysers, exposure meters and other general medical/industrial measuing and control applications.

    Features of the BPW20 and BPW21 photodiodes:
    TO-5 package with flat glass lens
    8.13 mm diameter
    Radiant sensitive area: 7.5 mm²
    High photo sensitivity
    Angle of half intensity: 50°
    Low dark current
    High linearity




    IR Photodiodes, Vishay Semiconductor










    Specifications

    Maximum Wavelength Detected
    675nm
    Diode Material
    Si
    Brand
    Vishay
    Length
    9.1mm
    Package Type
    TO-5
    Height
    3.1mm
    Width
    9.1mm
    Polarity
    Forward
    Minimum Wavelength Detected
    420nm
    Number of Pins
    2
    Mounting Type
    Through Hole
    Angle of Half Sensitivity
    50 °
    Wavelength of Peak Sensitivity
    565nm
    Spectrums Detected
    Visible Light
