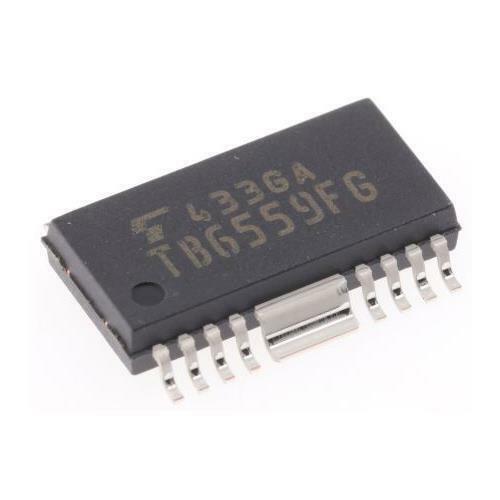

1x Toshiba TB6559FG(O,8,EL), Brushed Motor Driver IC, 30V 2.5A 18-Pin, HSOP - Toshiba

roll over the image to zoom in

£0.00
£5.99
RS 428-304
Earn0
reward points

In stock: 80

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    Basic Micro Box


    Toshiba


    Toshiba TB6559FG(O,8,EL), Brushed Motor Driver IC, 30 V 2.5A 18-Pin, HSOP


    • BrandToshiba
    • Mfr. Part No.TB6559FG(O,8,EL)
    •  Toshiba
    •
    •
    • You will get ONE IC


    Toshiba TB6559FG(O,8,EL), Brushed Motor Driver IC, 30 V 2.5A 18-Pin, HSOP





    Product Details

    Motor Controllers, Toshiba


    Motor Controllers & Drivers, Toshiba


    Specifications


    Motor TypeBrushed DC
    Output ConfigurationFull Bridge
    Maximum IGBT Collector Current2.5A
    Maximum Collector Emitter Voltage30 V
    Mounting TypeSurface Mount
    Package TypeHSOP
    Maximum Operating Supply Voltage30 V
    Pin Count18
    Minimum Operating Supply Voltage10 V
    Maximum Operating Temperature+85 °C
    Height2.3mm
    Dimensions13 x 6.4 x 2.3mm
    Length13mm
    Width6.4mm
    Minimum Operating Temperature-30 °C



    To view the datasheet please Click Here

    Thank you for looking, if you have any questions please ask or call us.
