     TEN 3-2411WI Traco Power DC-DC Converter, 9V-36V DC In 5V DC / 600mA Out 3W

    You will get ONE DC-DC Converter

    Description:

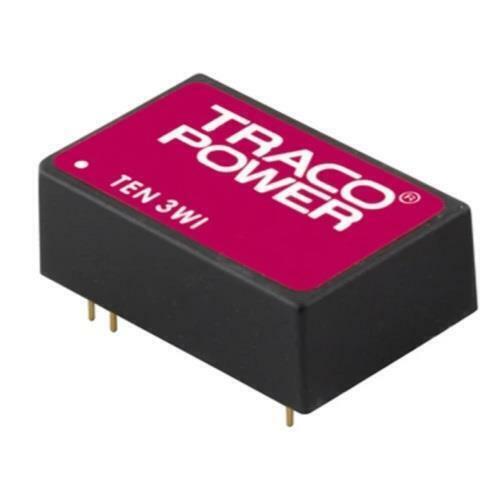

    The Traco Power TEN 3WI series is a range of isolated, 3 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature range of –40°C to +70°C. The full SMD design of these DC-DC converters guarantees high reliability. The TEN 3WI series comes with built-in EMI input filter and complies with EN 55022, class A without the need of external components. Ideal applications of these DC-DC converters are in battery operated equipment and distributes power architectures in communication, instrumentation and industrial electronics.

    Ultra-wide 4:1 input range
    Full SMD-Design
    High efficiency up to 84%
    Extended operating temperature range –40°C to +85°C
    Excellent load and line regulation
    Indefinite short-circuit protection
    I/O isolation 1500 VDC
    Input filter to meet EN 55022, Class A and FCC, level A without external components
    Lead free design, fully RoHS compliant

    Standards
    UL 60950-1 , IEC/EN 60950-1
    Approvals
    UL, IEC/EN, CSA certificate, CB test report
    Approvals
    CSA File No. 226037
    Standards
    UL 60950-1, EN 60950-1, IEC 60950-1 (Compliance up to 60 VDC input voltage, SELV limit)

    Specifications:
