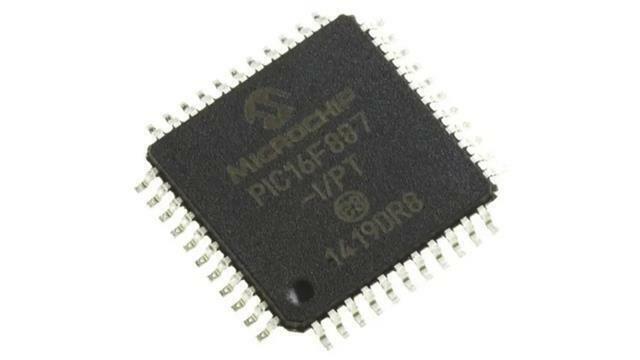

1x PIC16F887-I/PT Microchip 8-Bit PIC Microcontroller PIC16F 20MHz 44-Pin TQFP - Microchip
roll over the image to zoom in
£0.00
£3.99
RS 399-420 / TS-LB-6i
Unit Quantity:
1
Unit Type:
Unit
Location:
TS-LB-6i
Microchip
PIC16F887-I/PT Microchip 8-Bit PIC Microcontroller PIC16F 20MHz 44-Pin TQFP
You will get ONE microcontroller
Description:
The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F882/883/884/886/887 family of microcontrollers is based upon Microchip’s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory, up to 368 bytes RAM and EEPROM of up to 256 bytes. On board is a configurable oscillator factory calibrated to ±1% accuracy.
Microcontroller Features
The PIC16F882/883/884/886/887 family of microcontrollers is based upon Microchip’s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory, up to 368 bytes RAM and EEPROM of up to 256 bytes. On board is a configurable oscillator factory calibrated to ±1% accuracy.
Microcontroller Features
- 20 MHz Max. CPU Speed
- 35 Instructions
- 8 Level Hardware Stack
- 8 MHz Internal Oscillator – Selectable Output Range from 8 MHz to 31 kHz
- 24 I/O Pins – PIC16F882/883/886
- 35 I/O Pins – PIC16F884/887
- Power-On Reset (POR)
- Brown-Out Reset (BOR)
- Power-Up Timer (PWRT)
- Oscillator Start-Up Timer (OST)
- Watchdog Timer (WDT)
- In-Circuit Serial Programming (ICSP)
- In-Circuit Debug (ICD)
Peripherals
- 10-bit Analogue-to-Digital Converter (ADC) - PIC16F882/883/886 11 Channels,
- PIC16F884/887 14 Channels
- Two Capture, Compare, PWM (CCP) Modules
- Enhanced Capture, Compare, PWM (ECCP) Module
- Two Comparators
- Two 8-bit Timers
- One 16-bit Timer
- Master Synchronous Serial Port (MSSP) with SPI and I2C
- Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)

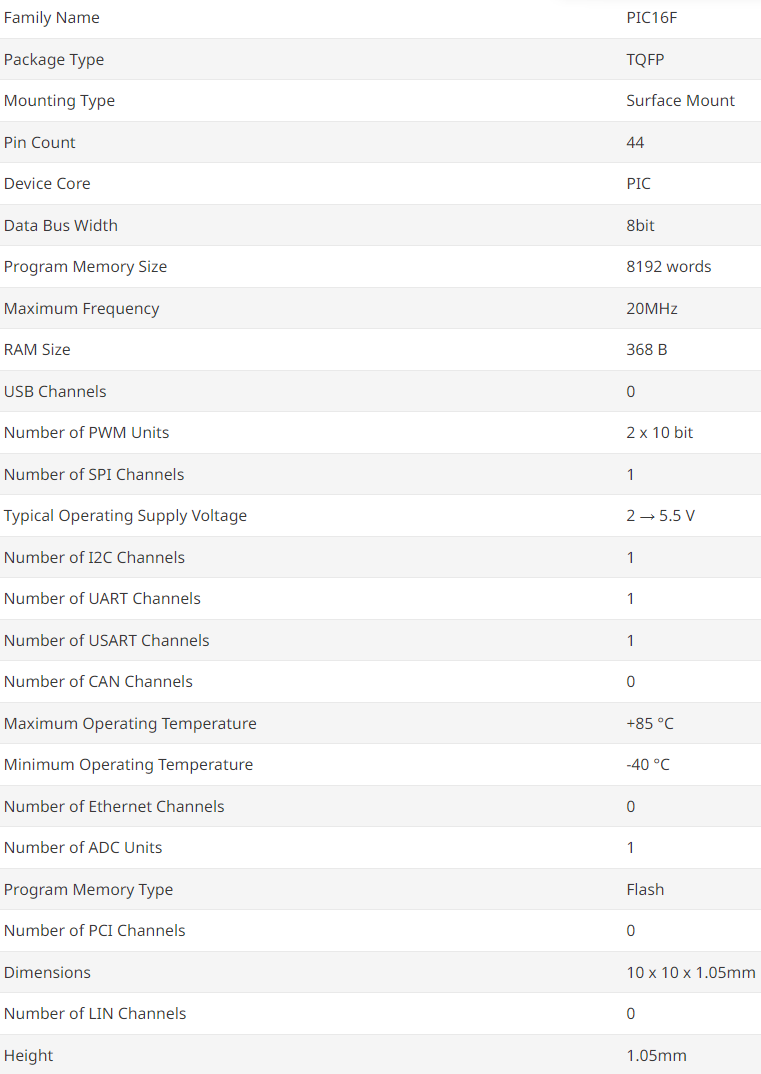

Specifications
