1x Microchip PIC24F16KA302-I/SO 16bit PIC Microcontroller 32MHz 16kB Flash SOIC - Microchip

roll over the image to zoom in

£0.00
£8.99
RS 742-1126
Earn0
reward points

In stock: 10

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    TS BRA-2H


    Microchip

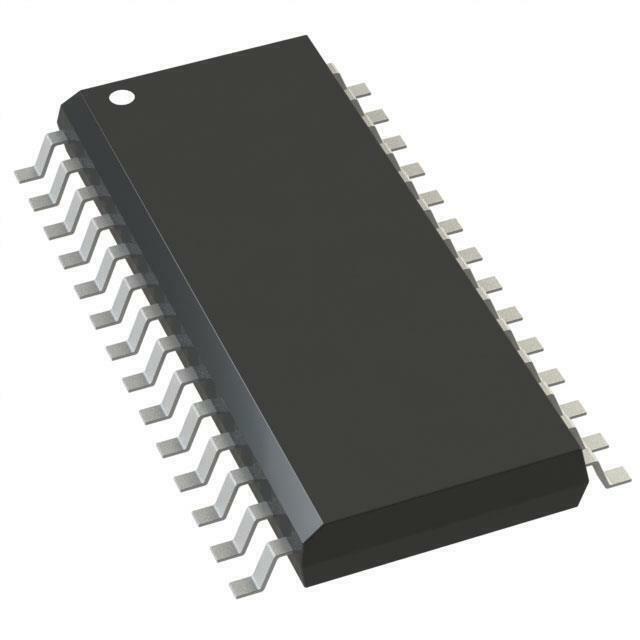

    Microchip PIC24F16KA302-I/SO , 16bit PIC Microcontroller, 32MHz, 16 kB Flash, 28-Pin SOIC


    • RS Stock No.742-1126
    • BrandMicrochip
    • Mfr Part No.PIC24F16KA302-I/SO
    •
    •
    •
    • You will get ONE microcontroller








    Product Details

    PIC24FxxKA301/302/304 16-Bit Flash Microcontrollers





    PIC24 Microcontrollers

    Specifications

    Maximum Operating Temperature
    +85 °C
    PWM Resolution
    16bit
    ADC Resolution
    12bit
    PWM Channels
    3
    Pulse Width Modulation
    3 x 16 bit
    Number of ADC Units
    1
    Number of UART Channels
    2
    Instruction Set Architecture
    DSP, RISC
    ADCs
    13 x 12 bit
    Package Type
    SOIC
    Mounting Type
    Surface Mount
    Data Bus Width
    16bit
    Number of PCI Channels
    0
    Width
    7.5mm
    Maximum Number of Ethernet Channels
    0
    Number of PWM Units
    1
    Height
    2.35mm
    Number of USART Channels
    0
    Dimensions
    12.8 x 7.5 x 2.35mm
    Number of Ethernet Channels
    0
    Timer Resolution
    16bit
    Number of LIN Channels
    0
    Program Memory Type
    Flash
    Program Memory Size
    16 kB
    Length
    12.8mm
    Device Core
    PIC
    Brand
    Microchip
    ADC Channels
    13
    Minimum Operating Temperature
    -40 °C
    Family Name
    PIC24F
    RAM Size
    2.048 kB, 512 B
    Timers
    5 x 16 bit
    Number of CAN Channels
    0
    Pin Count
    28
    Number of Timers
    5
    Number of I2C Channels
    2
    Number of SPI Channels
    2
    Maximum Frequency
    32MHz
    Typical Operating Supply Voltage
    1.8 → 3.6 V
