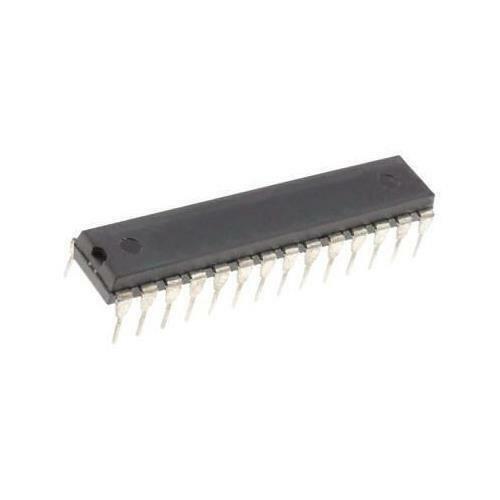

1x Microchip PIC18F2510-I/SO 8bit PIC Microcontroller 40MHz 32kB Flash 28P SOIC - Microchip

roll over the image to zoom in

£0.00
£5.99
RS 666-8946
Earn0
reward points

In stock: 4

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    TS BRA-2H


    Microchip

    Microchip PIC18F2510-I/SO, 8bit PIC Microcontroller, 40MHz, 32 kB Flash, 28-Pin SOIC


    • BMUK Stock No.666-8946
    • BrandMicrochip
    • Mfr Part No.PIC18F2510-I/SO
    •
    •
    •
    • You will get ONE microcontroller








    Product Details

    PIC18F2x1x/4x1x 8-Bit Microcontrollers

    The PIC18F Microcontrollers from Microchip are the most capable 8-bit devices within Microchip’s offer. Available within the range is CAN, LIN and Ethernet capability as part of a comprehensive range of peripherals to meet the needs of embedded applications and versions featuring XLP (Extreme Low-Power) Technology for where power consumption is a key consideration.

    The PIC18F2x1x/4x1x family of microcontrollers is based upon Microchip’s PIC18 architecture offering a 31 level hardware stack and 75 instructions. These MCUs provide up to 10 MIPS, up to 64 Kbytes program memory RAM of up to 3896 bytes. On board is a configurable oscillator.

    Microcontroller Features

    40 MHz Max. CPU Speed
    75 Instructions – 83 with Extended Instruction Set Enabled
    31 Level Hardware Stack
    Configurable Internal Oscillator – Selectable Frequency Range 16 MHz to 31 kHz
    25 I/O Pins – PIC18F2xxx Models
    36 I/O Pins – PIC18F4xxx Models
    nanoWatt Technology
    Power-On Reset (POR)
    Power-Up Timer (PWRT)
    Oscillator Start-Up Timer (OST)
    Brown-Out Reset (BOR)
    Extended Watchdog Timer (WDT)
    High/Low-Voltage Detection (HLVD) Module
    Low-Voltage Programming (LVP)
    In-Circuit Serial Programming (ICSP)
    In-Circuit Debug (ICD)

    Peripherals

    10-bit Analogue to Digital Converter (ADC) – PIC18F2xxx Models 10 Channel; PIC18F4xxx 13 Channel
    One Enhanced Capture, Compare, PWM Module – PIC18F4xxx Models Only
    Capture, Compare, PWM Modules – PIC18F2xxx Models x 2, PIC18F4xxx Models x 1
    Two Comparators
    One 8-bit Timers
    Three 16-bit Timers
    Master Synchronous Serial Port (MSSP) Module with SPI and I2C
    Enhanced Addressable Universal Synchronous Asynchronous Receiver Transmitter (EUSART)

    Specifications

    Maximum Operating Temperature
    +85 °C
    ADC Resolution
    10bit
    Pulse Width Modulation
    2(CCP)
    Number of ADC Units
    1
    Number of UART Channels
    0
    Instruction Set Architecture
    RISC
    ADCs
    10 x 10 bit
    Package Type
    SOIC
    Mounting Type
    Surface Mount
    Data Bus Width
    8bit
    Number of PCI Channels
    0
    Width
    7.5mm
    Number of PWM Units
    2
    Height
    2.35mm
    Number of USART Channels
    1
    Dimensions
    17.9 x 7.5 x 2.35mm
    Number of Ethernet Channels
    0
    Timer Resolution
    8 bit, 16 bit
    Number of LIN Channels
    0
    Program Memory Type
    Flash
    Program Memory Size
    32 kB
    Length
    17.9mm
    Device Core
    PIC
    Brand
    Microchip
    ADC Channels
    10
    Minimum Operating Temperature
    -40 °C
    Family Name
    PIC18F
    USB Channels
    0
    RAM Size
    1.536 kB
    Timers
    1 x 8 bit, 3 x 16 bit
    Number of CAN Channels
    0
    Pin Count
    28
    Number of Timers
    4
    Number of I2C Channels
    1
    Number of SPI Channels
    1
    Maximum Frequency
    40MHz
    Typical Operating Supply Voltage
    4.2 → 5.5 V
