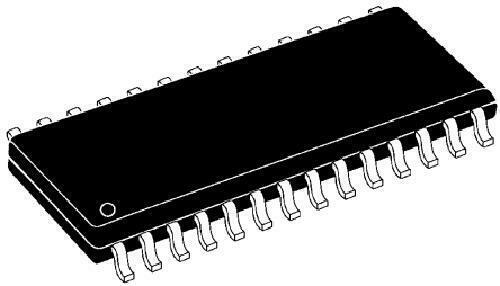

    Microchip PIC16F1513-I/SO, 8bit PIC Microcontroller, 20MHz, 4096 words Flash, 28-Pin SOIC


    • RS Stock No.770-7799
    • BrandMicrochip
    • Mfr Part No.PIC16F1513-I/SO
    •
    •
    •
    • You will get ONE microcontroller




    Product Details

    PIC16F1512/1513 8-Bit Flash Microcontrollers

    The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

    The PIC16F1512/1513 family of microcontrollers is based upon Microchip’s enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 5 MIPS, up to 7 Kbytes program memory with data memory of up to 256 bytes RAM. On board is a configurable oscillator with ±1% accuracy.




    PIC16 Microcontrollers

    Specifications

    Maximum Operating Temperature
    +85 °C
    PWM Resolution
    10bit
    ADC Resolution
    10bit
    Pulse Width Modulation
    2(10 bit)
    Number of ADC Units
    1
    Number of UART Channels
    0
    Instruction Set Architecture
    RISC
    ADCs
    1(17 x 10 bit)
    Package Type
    SOIC
    Mounting Type
    Surface Mount
    Data Bus Width
    8bit
    Number of PCI Channels
    0
    Width
    7.5mm
    Number of PWM Units
    2
    Height
    2.35mm
    Dimensions
    17.9 x 7.5 x 2.35mm
    Number of Ethernet Channels
    0
    Timer Resolution
    8 bit, 16 bit
    Number of LIN Channels
    0
    Program Memory Type
    Flash
    Program Memory Size
    4096 words
    Length
    17.9mm
    Device Core
    PIC
    Brand
    Microchip
    ADC Channels
    17
    Minimum Operating Temperature
    -40 °C
    Family Name
    PIC16F
    USB Channels
    0
    RAM Size
    256 B
    Timers
    1 x 16 bit, 2 x 8 bit
    Number of CAN Channels
    0
    Pin Count
    28
    Number of Timers
    3
    Number of I2C Channels
    1
    Number of SPI Channels
    1
    Maximum Frequency
    20MHz
    Typical Operating Supply Voltage
    2.3 → 5.5 V
