1x MCP45HV51-502E/ST Microchip Digital Potentiometer 256-Position 5K Ohm 14-Pin - Microchip
roll over the image to zoom in
£0.00
£8.99
RS 829-0545 / TS-LB-4K
Unit Quantity:
1
Unit Type:
Unit
Country/Region of Manufacture:
Unknown
Resistance Rating:
5K Ohm
Termination Style:
SMD/SMT
Location:
TS-LB-4K
Microchip

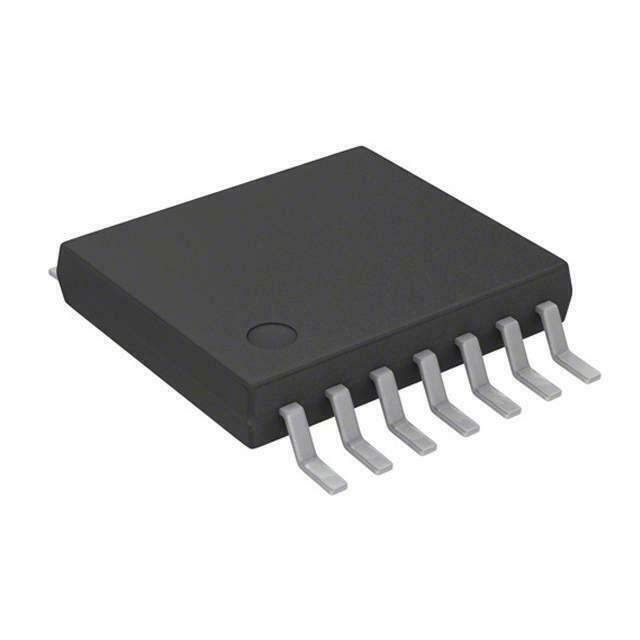

MCP45HV51-502E/ST Microchip Digital Potentiometer 256-Position 5K Ohm 14-Pin SMD
You will get ONE potentiometer IC
Description:
The MCP45HVx1 family of devices from Microchip are Digital Potentiometers with an SPI Interface and on board Volatile Memory. The device family has dual power rails, one analogue one digital. The Analogue power rail can handle up to +36 V and can be implemented as a dual rail (±18 V) relative to the digital logic ground.
The MCP45HVx1 has a Write Latch (WLAT) function that inhibits the volatile wiper register from being updated (latched) with received data until the WLAT pin is low. This allows the specification of a condition where the volatile wiper register is updated (such as zero crossing).
Features:
The MCP45HVx1 has a Write Latch (WLAT) function that inhibits the volatile wiper register from being updated (latched) with received data until the WLAT pin is low. This allows the specification of a condition where the volatile wiper register is updated (such as zero crossing).
Features:
- High-Voltage Analogue Support: +36 V terminal voltage range (DGND = V-), ±18 V terminal voltage range (DGND = V- +18 V)
- Wide Operating Voltage: Analogue 10 V to 36 V, Digital 2.7 V to 5.5 V or 1.8 V to 5.5 V (DGND ≤ V- +0.9 V)
- Single Resistor Network
- Resistor Network Resolution: 7-bit: 127 resistors (128 Taps) or 8-bit: 255 resistors (256 Taps) – model dependant
- High Terminal/Wiper Current (IW) Support: 25 mA for 5 kΩ, 12.5 mA for 10 kΩ and 6.5 mA for 50 kΩ and 100 kΩ
- Zero-Scale to Full-Scale Wiper Operation
- Low Wiper Resistance: 75 Ω (typical)
- Low Temperature Coefficient: Absolute (Rheostat) 50 ppm, Ratiometric (Potentiometer) 15 ppm (typical)
- SPI Serial Interface
- Resistor Network Terminal Disconnect via Shutdown pin (SHDN) or Terminal Control (TCON) register
- Write Latch (WLAT) Pin to Control Update of Volatile Wiper Register (such as Zero Crossing)
- Power-on Reset/Brown-out Reset for Digital and Analogue Supply
- Serial Interface Inactive Current (3 μA Typical)
- 500 kHz Typical Bandwidth (-3 dB) Operation (5.0 kΩ Device)

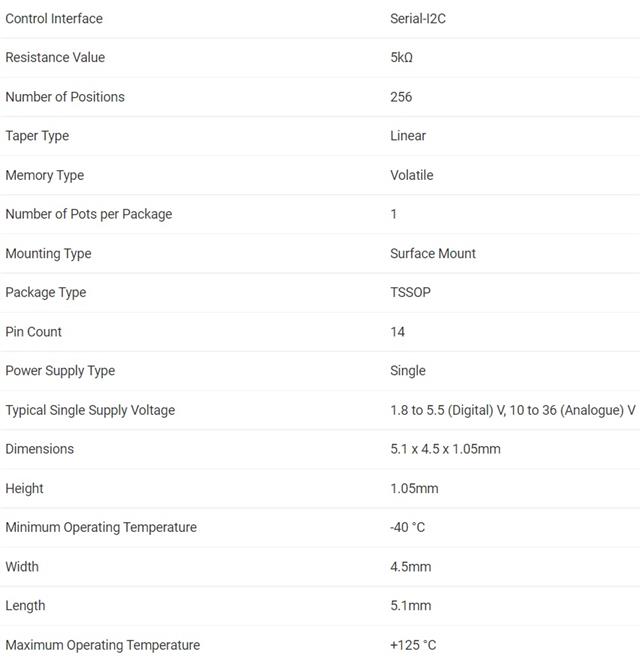

Specifications:
