1x Arcol FPA100-470R Resistor, Thick Film, Power, Flatpack, 100 Watt, 470 Ohm - Arcol

roll over the image to zoom in

£0.00
£23.95
FPA100-470RJ
Earn0
reward points

In stock: 84

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Resistance Rating:
    470 Ω
    Tolerance Rating:
    ±5 %


    Arcol

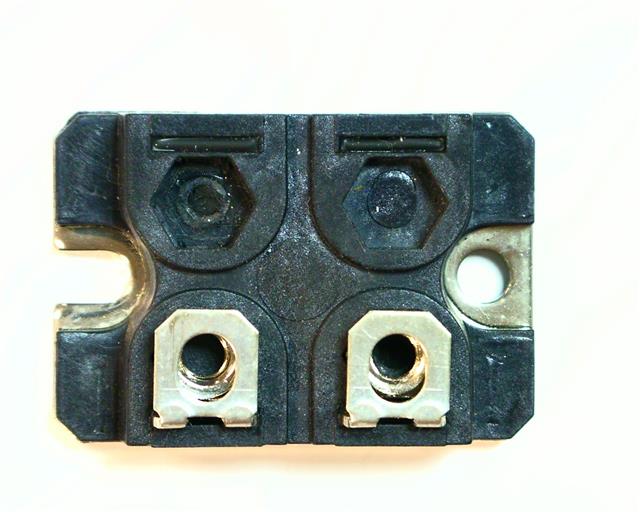

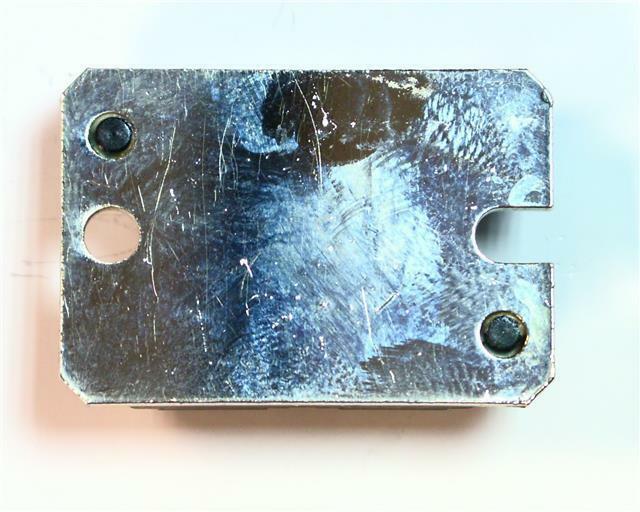

    Arcol Resistor FPA100-470RJ, Thick Film, Power, Flatpack, ISOTOP/SOT227, 100 Watt, 5%, 470 Ohm

    You will get 1 Resistor
    SPECIFICATION
    ManufacturerARCOL
    Resistor typethick film
    Mountingscrewed
    Resistance 470Ω
    Power100W
    Tolerance±5%
    Max. operating voltage1kV AC
    Body dimensions38 x 25 x 9mm
    Operating temperature-55...155°C
    Temperature coefficient100ppm/°C
    Resistor featuresneeds additional heatsink
    LeadsM4 screws
    Mounting holes pitch30.3mm
    Number of mounting holes2


    For a Specification PDF Please CLICK HERE
