1x 277950 DILM150-XHI22 Eaton Auxiliary Contact, 4 Contacts 2NC + 2NO - Eaton

roll over the image to zoom in

£0.00
£28.95
RS 513-0229 / TSB-40D-RB2
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1
    Unit Type:
    Unit
    Location:
    TSB-40D-RB2


    Eaton

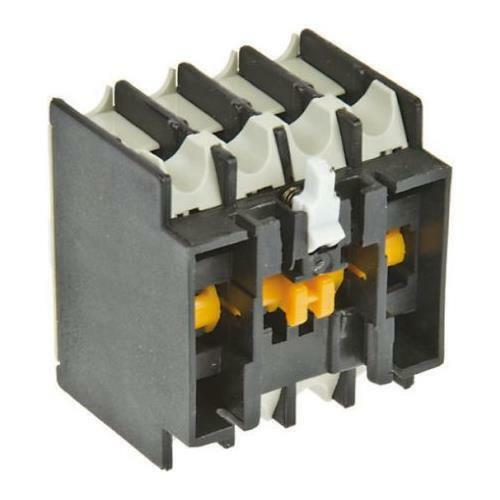

    277950 DILM150-XHI22 Eaton Auxiliary Contact, 4 Contacts 2NC + 2NO

    You will get ONE contact

    Description:
    Grab this auxiliary contact from Eaton to give you the power to add more components to your electrical system. It's a versatile module that's ideal for motor starting, electrical signalling and industrial control applications. The assembly doesn't have a problem in high humidity since it's manufactured with climatic proofing for warm and damp environments. Its interlocking opposing contact design maintains an organised layout to prevent crossed wires during operation. Front mounting with a screw connection means getting set up is swift and you don't need to reach for any tools.

    • IP20 rating shows it's touch-proof and resistant to dust or objects over 12mm
    • Light weight of 55g means it doesn't add unnecessary load to your system
    • Four poles enable multiple connections to boost workflow

    Can I use this contact in harsh industrial conditions?
    It works safely in a broad temperature range of -25°C to +60°C, so it's suitable for use in harsh settings.

    Will I get long-term performance from this auxiliary contact?
    Yes – it's tested to deliver a mechanical lifespan of up to 1.3 million operations, so you can rely on its longevity.

    Note
    Eaton formerly known as Moeller

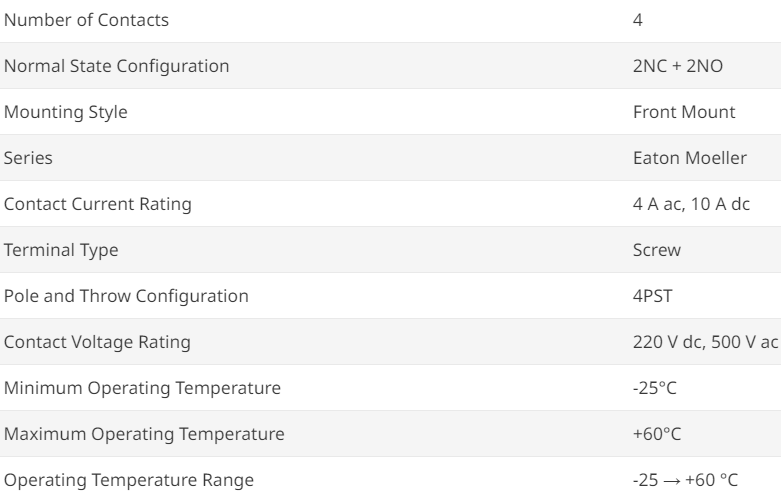

    Specifications:
