1x 0332 07 Lumberg 7 Pole Din Plug, 5A 250V AC IP68, Male, Cable Mount - Lumberg
roll over the image to zoom in
£0.00
£16.95
RS 533-2627 /
Unit Quantity:
1
Unit Type:
Unit
Lumberg
0332 07 Lumberg 7 Pole Din Plug, 5A 250V AC IP68, Male, Cable Mount
You will get ONE din plug
Description:
Threaded joint and solder terminals
360° shielded
Standards:
IEC60130-9
Lumberg DIN Connector
The Lumberg DIN connector is a 7-pole, male, din plug socket with an electrical rating of 250VAC and 5A. It is round with pins arranged in a circular pattern within the connector. It has chassis, cable mount plugs and sockets up to 12-way.
Features & Benefits:
• Cable mount device
• Contact resistance ≤5mohm
• Operating temperature ranges between -40°C and 85°C
• Shielded at 360°
• Solder terminals
• Threaded joint device
Applications:
• Automation technology
• Medical instrumentation
Certifications:
• EN 60529
• IEC60130-9
• IP68 rated
360° shielded
Standards:
IEC60130-9
Lumberg DIN Connector
The Lumberg DIN connector is a 7-pole, male, din plug socket with an electrical rating of 250VAC and 5A. It is round with pins arranged in a circular pattern within the connector. It has chassis, cable mount plugs and sockets up to 12-way.
Features & Benefits:
• Cable mount device
• Contact resistance ≤5mohm
• Operating temperature ranges between -40°C and 85°C
• Shielded at 360°
• Solder terminals
• Threaded joint device
Applications:
• Automation technology
• Medical instrumentation
Certifications:
• EN 60529
• IEC60130-9
• IP68 rated

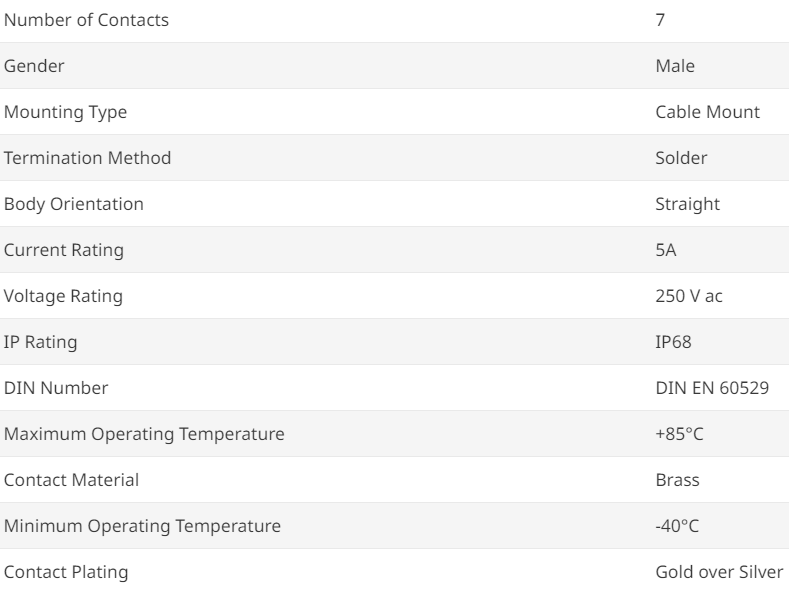

Specifications:
