1976 x Panasonic DRA9114Y0L PNP Digital Transistor, 100mA 50V 10kΩ, 3-Pin - Panasonic
roll over the image to zoom in
£0.00
£178.99
RS 707-4089
Unit Quantity:
1976
Unit Type:
Unit
Location:
APR BOX X
Panasonic
Panasonic, DRA9114Y0L PNP Digital Transistor, 100 mA 50 V 10 kΩ, Ratio Of 0.21, 3-Pin SSMini3
- BMUK Part # : 707-4089
- BrandPanasonic
- Mfr. Part No.DRA9114Y0L
- You will get 1976 Transistors on 1 Reel

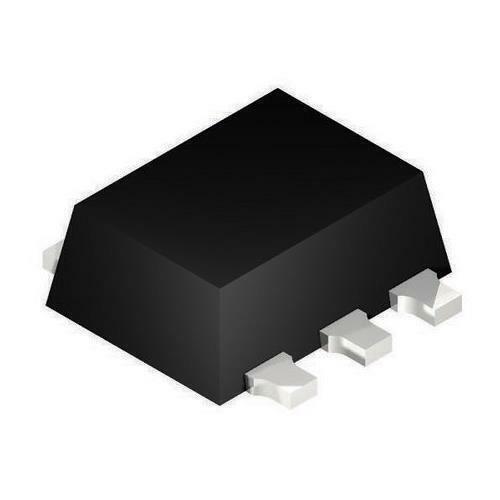

Image representative of range
Product Details
Dual Resistor Digital PNP Transistors, Panasonic
Digital Transistors, Panasonic
Resistor-equipped bipolar transistors, also known as “Digital Transistors” or “Bias Resistor Transistors”, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.
Specifications
| Transistor Type | PNP | |
| Number of Elements per Chip | 1 | |
| Maximum Continuous Collector Current | 100 mA | |
| Maximum Collector Emitter Voltage | 50 V | |
| Typical Input Resistor | 10 kΩ | |
| Mounting Type | Surface Mount | |
| Package Type | SSMini3 F3 B | |
| Pin Count | 3 | |
| Minimum DC Current Gain | 80 | |
| Transistor Configuration | Single | |
| Maximum Power Dissipation | 125 mW | |
| Maximum Collector Emitter Saturation Voltage | 0.25 V | |
| Typical Resistor Ratio | 0.21 | |
| Width | 0.85mm | |
| Maximum Operating Temperature | +150 °C | |
| Height | 0.6mm | |
| Length | 1.6mm | |
| Dimensions | 1.6 x 0.85 x 0.6mm |
