185 x Bourns SDR1307 Series Type 1307 Wire-wound SMD Inductor, 39uH ±10% - Bourns

roll over the image to zoom in

£0.00
£87.99
RS 727-1739P
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    185
    Unit Type:
    Unit
    Location:
    APR SHELF BOX 1


    Bourns

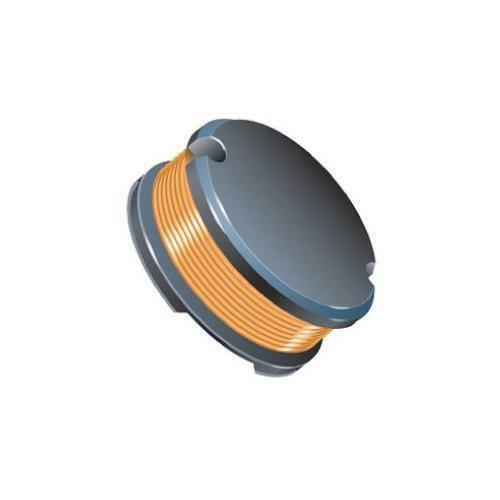

    Bourns SDR1307 Series Type 1307 Wire-wound SMD Inductor with a Ferrite Core, 39 μH ±10% Wire-Wound 4.6A Idc Q:28


    • BMUK Part # :-727-1739P
    • BrandBourns
    • Mfr. Part No.SDR1307-390KL


    You will get 185 Inductors on 1 Reel




                 Image representative of range

    Product Details




    Specifications



    		Inductance39 μH

    		Maximum DC Current4.6A

    		Package/Case1307

    		Height7mm

    		Diameter13mm

    		Dimensions13 (Dia.) x 7mm

    		Tolerance±10%

    		Maximum DC Resistance75mΩ

    		SeriesSDR1307

    		Core MaterialFerrite

    		Maximum Self Resonant Frequency9MHz

    		Minimum Operating Temperature-40°C

    		Maximum Operating Temperature+125°C

    		Inductor ConstructionWire-Wound

    		Minimum Quality Factor28


    For a Specification PDF Please        CLICK HERE
