1842 x Panasonic DMC266030R Dual NPN Digital Transistor 100mA 50V 47kΩ, 6-Pin - Panasonic
roll over the image to zoom in
£0.00
£175.99
RS 710-6017
Unit Quantity:
1842
Unit Type:
Unit
Location:
APR BOX T
Panasonic

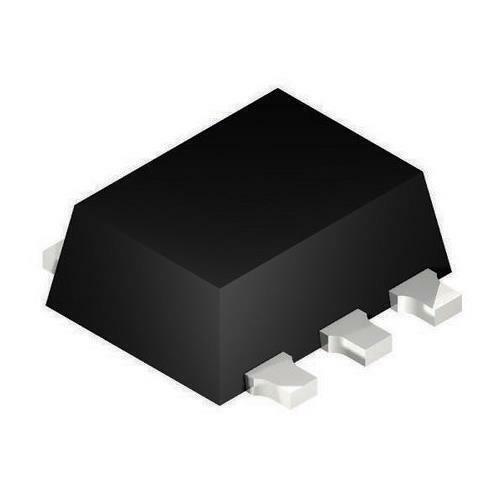

Panasonic, DMC266030R, Dual NPN Digital Transistor, 100 mA 50 V 47 kΩ, Ratio Of 1, 6-Pin Mini6
- BMUK Part # : 710-6017
- BrandPanasonic
- Mfr. Part No.DMC266030R
- You will get 1842 Transistors on a Reel

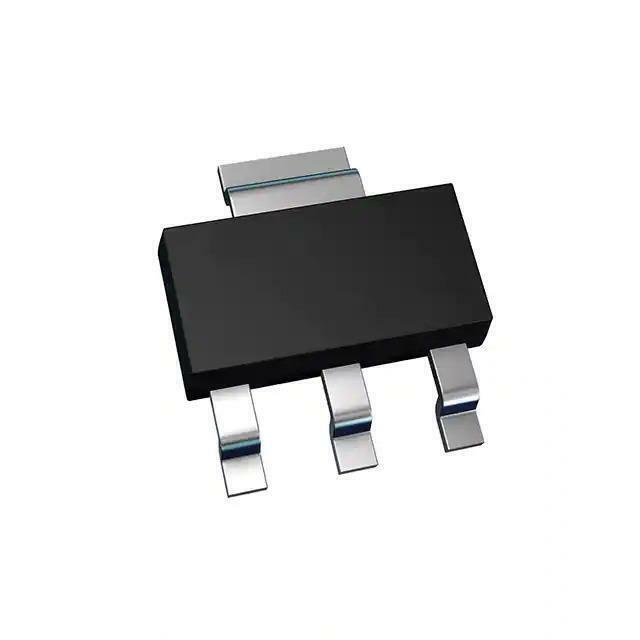

Image representative of range
Product Details
Dual Resistor Dual Digital NPN Transistors, Panasonic
Digital Transistors, Panasonic
Resistor-equipped bipolar transistors, also known as “Digital Transistors” or “Bias Resistor Transistors”, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.
Specifications
| Transistor Type | NPN | |
| Number of Elements per Chip | 2 | |
| Maximum Continuous Collector Current | 100 mA | |
| Maximum Collector Emitter Voltage | 50 V | |
| Typical Input Resistor | 47 kΩ | |
| Mounting Type | Surface Mount | |
| Package Type | Mini6 G4 B | |
| Pin Count | 6 | |
| Minimum DC Current Gain | 80 | |
| Maximum Power Dissipation | 300 mW | |
| Maximum Collector Emitter Saturation Voltage | 0.25 V | |
| Typical Resistor Ratio | 1 | |
| Maximum Operating Temperature | +150 °C | |
| Height | 1.1mm | |
| Dimensions | 2.9 x 1.5 x 1.1mm | |
| Length | 2.9mm | |
| Width | 1.5mm |
