1500 x Panasonic DSA3G0100L PNP Bipolar Transistor 30mA, 20V 3-Pin SSSMini3 F2 B - Panasonic
roll over the image to zoom in
£0.00
£92.99
RS 760-2883
Unit Quantity:
1500
Unit Type:
Unit
Location:
APR BOX Z (B)
Panasonic

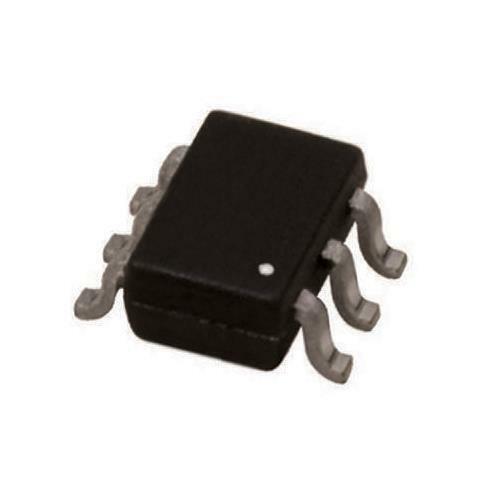

Panasonic DSA3G0100L PNP Bipolar Transistor, 30 mA, 20 V, 3-Pin SSSMini3 F2 B
- BMUK Part # :-760-2883
- BrandPanasonic
- Mfr. Part No.DSA3G0100L
- You will get 1500 Transistors on 1 Reel
Product Details
Small Signal PNP Transistors, Panasonic
Bipolar Transistors, Panasonic
Specifications
| Transistor Type | PNP | |
| Maximum DC Collector Current | 30 mA | |
| Maximum Collector Emitter Voltage | 20 V | |
| Package Type | SSSMini3 F2 B | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 100 mW | |
| Minimum DC Current Gain | 70 | |
| Maximum Collector Base Voltage | -30 V | |
| Maximum Emitter Base Voltage | -5 V | |
| Maximum Operating Frequency | 300 MHz | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Length | 1.2mm | |
| Dimensions | 1.2 x 0.8 x 0.47mm | |
| Maximum Collector Emitter Saturation Voltage | -0.1 V | |
| Maximum Operating Temperature | +150 °C | |
| Height | 0.47mm | |
| Width | 0.8mm |
To view the datasheet please Click Here
