1500 x Nichicon Aluminium Electrolytic Capacitor Surface Mount 100uF 50V dc - Nichicon
roll over the image to zoom in
£0.00
£369.99
RS 520-2037P
Unit Quantity:
1500
Unit Type:
Unit
Location:
Reel Box LB - Shelf
Nichicon

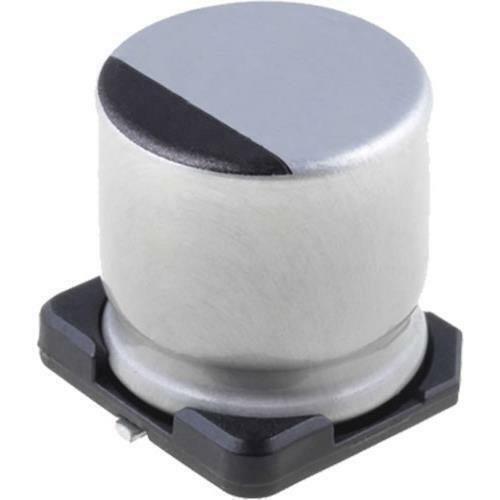

Nichicon Aluminium Electrolytic Capacitor 100μF 50V dc 8mm Surface Mount WT Series +105°C
- BrandNichicon
- Mfr. Part No.UWT1H101MNL1GS
- You will get 1500 Capacitors on 1 Reel
Product Details
WT Series
WT Aluminium Electrolytic Capacitor series
Chip type operating over wide temperature range of to –55 to +105°C.
Rated Voltage Range of 4 to 50V
Rated Capacitance Range of 0.1 to 1500μF
Designed for surface mounting on high density PC board
Suitable for automatic mounting machine using carrier tape
| Capacitance tolerance | 20 % |
| Temperature range | -55 to +105°C |
| Leakage current, whichever is greater | 0.01CV or 3μA whichever is greater |
| Life expectancy at 105°C | 1000 hours |
Specifications
| Capacitance | 100 µF | |
| Technology | Electrolytic | |
| Voltage | 50 V dc | |
| Mounting Type | Surface Mount | |
| Dimensions | 8 (Dia.) x 10mm | |
| Height | 10mm | |
| Diameter | 8mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
| Construction | Cylindrical | |
| Series | WT | |
| Tolerance Minus | -20% | |
| Tolerance | ±20% | |
| Tolerance Plus | +20% | |
| Terminal Type | Surface Mount | |
| Lifetime | 1000h | |
| Leakage Current | 3 μA | |
| Ripple Current | 140mA |
