1495 x Panasonic DMC501010R Dual NPN Transistor, 100mA, 50V, 5-Pin - Panasonic
roll over the image to zoom in
£0.00
£207.99
RS 712-5881
Unit Quantity:
1495
Unit Type:
Unit
Location:
ES 2G
Panasonic

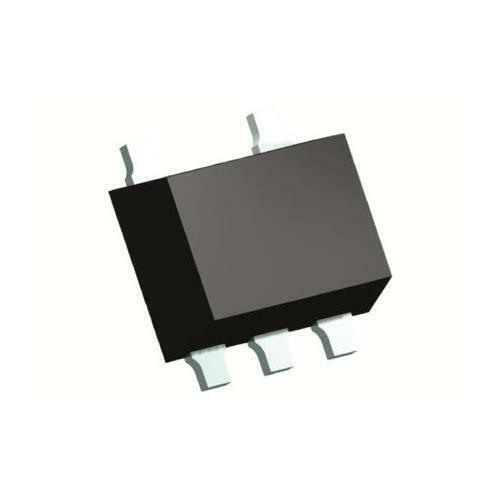

Panasonic DMC501010R Dual NPN Transistor, 100 mA, 50 V, 5-Pin SMini5 F3 B
- BMUK Part # : 712-5881
- BrandPanasonic
- Mfr. Part No.DMC501010R
- You will get 1495 Transistors on 1 Reel
Product Details
Small Signal NPN Transistors, Panasonic
Bipolar Transistors, Panasonic
Specifications
| Transistor Type | NPN | |
| Maximum DC Collector Current | 100 mA | |
| Maximum Collector Emitter Voltage | 50 V | |
| Package Type | SMini5 F3 B | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 150 mW | |
| Minimum DC Current Gain | 210 | |
| Transistor Configuration | Common Emitter | |
| Maximum Collector Base Voltage | 60 V | |
| Maximum Emitter Base Voltage | 7 V | |
| Maximum Operating Frequency | 150 MHz | |
| Pin Count | 5 | |
| Number of Elements per Chip | 2 | |
| Maximum Collector Emitter Saturation Voltage | 0.3 V | |
| Dimensions | 2 x 1.25 x 0.6mm | |
| Length | 2mm | |
| Maximum Operating Temperature | +150 °C | |
| Height | 0.6mm | |
| Width | 1.25mm |
