1460 x Panasonic Zener Diode DZ2430000L, 30V 5% 2W SMT 2-Pin TMiniP2 F2 B - Panasonic

roll over the image to zoom in

£0.00
£234.99
RS 760-2852
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1460
    Unit Type:
    Unit
    Location:
    APR BOX V X 2


    Panasonic

    Panasonic Zener Diode, 30V 5% 2 W SMT 2-Pin TMiniP2 F2 B


    • BMUK Part # :-760-2852
    • BrandPanasonic
    • Mfr. Part No.DZ2430000L
    •
    •
    • You will get 1460 Diodes on 1 Reel

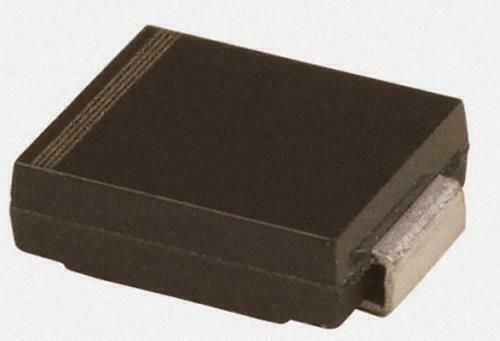

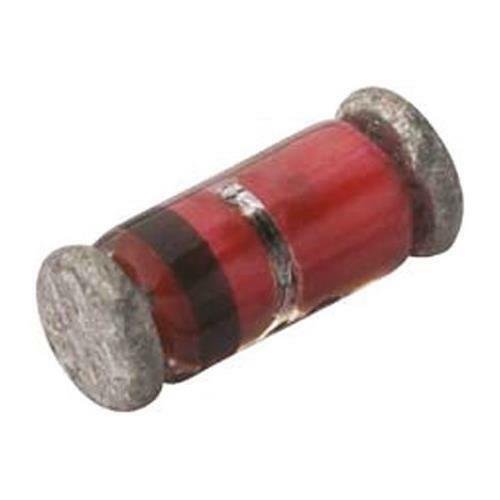

    Image representative of range




    Product Details

    Zener Diodes 2W, DZ24 Series, Panasonic


    Zener Diodes, Panasonic


    Specifications


    		Nominal Zener Voltage30V

    		Diode ConfigurationSingle

    		Mounting TypeSurface Mount

    		Number of Elements per Chip1

    		Maximum Power Dissipation2 W

    		Package TypeTMiniP2 F2 B

    		Zener TypeVoltage Regulator

    		Zener Voltage Tolerance5%

    		Pin Count2

    		Test Current10mA

    		Maximum Zener Impedance30Ω

    		Maximum Reverse Leakage Current10µA

    		Length3.8mm

    		Dimensions3.8 x 2.4 x 0.82mm

    		Height0.82mm

    		Width2.4mm

    		Maximum Operating Temperature+150 °C

    		Typical Voltage Temperature Coefficient32.5mV/°C

    To view the datasheet please Click Here
