1460 x Panasonic DB3J316K0L SMT Schottky Diode, 30V 100mA, 800ps, 3-Pin - Panasonic

roll over the image to zoom in

£0.00
£95.99
RS 711-5465
Earn0
reward points

In stock: 1

Sorry! We're out of stock

Add To Your Wishlist
    Unit Quantity:
    1460
    Unit Type:
    Unit
    Location:
    APR BOX T ALSO APR BOX Z (B)


    Panasonic

    Panasonic DB3J316K0L SMT Schottky Diode, 30V 100mA, 800ps, 3-Pin SMini3 F2 B


    • BMUK Part # :-711-5465
    • BrandPanasonic
    • Mfr. Part No.DB3J316K0L
    •
    •
    • You will get 1460 Diodes on 1 Reel

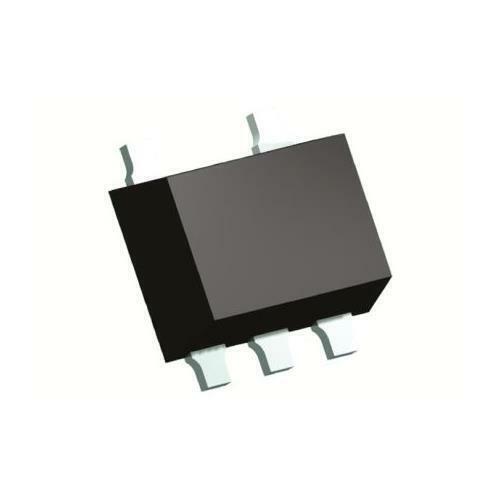

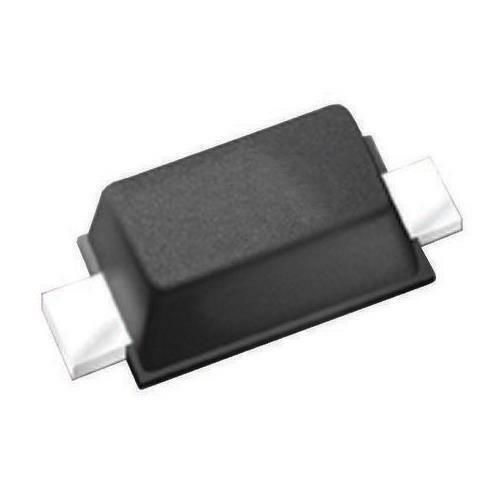

    Image representative of range



    Product Details

    Schottky Barrier Diodes, up to 1.5A, Panasonic


    Diodes and Rectifiers, Panasonic


    Specifications


    		Maximum Continuous Forward Current100mA

    		Diode ConfigurationSingle

    		Number of Elements per Chip1

    		Peak Reverse Repetitive Voltage30V

    		Mounting TypeSurface Mount

    		Package TypeSMini3 F2 B

    		Diode TypeSchottky

    		Pin Count3

    		Maximum Forward Voltage Drop550mV

    		Length2mm

    		Width1.25mm

    		Height0.9mm

    		Peak Reverse Recovery Time800ps

    		Peak Reverse Current15µA

    		Peak Non-Repetitive Forward Surge Current1A

    		Maximum Operating Temperature+125 °C

    		Dimensions2 x 1.25 x 0.9mm




    To view the datasheet please Click Here
